TP1900 Comfort - 19" Colour Touch
warranty

6AV21240UC020AX1

TP1900 Comfort - 19" Colour Touch

Produced by Siemens

Availability In Stock

Price - £4,377.00

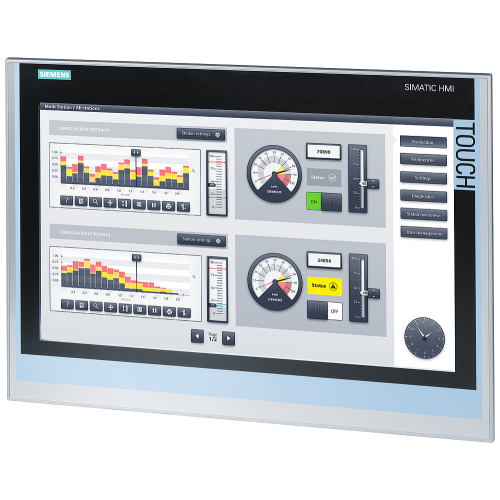

SIMATIC HMI TP1900 Comfort, Comfort Panel, Touch operation, 19" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP
No alternatives available for this product.
Product
Manufacturer Material ID -
6AV2124-0UC02-0AX1
Net Weight -
6.63kg
Additional Product Information
Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A992
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503
Technical Specification
Built-in depth -
75 Millimetre
Number of interfaces PROFINET -
2
Recess depth -
75 Millimetre
Screen diagonal -
18.5 inch
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
2
Number of colours of the display -
16777216
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Useful project memory/user memory -
24000 kiloByte (1000 Byte)
Number of password levels -
50
Number of online languages -
32
Width of the front -
483 Millimetre
Height of the front -
337 Millimetre
Number of HW-interfaces PROFINET -
2
Supply voltage DC -
19.2 Volt
