6AV66461BA150AA0

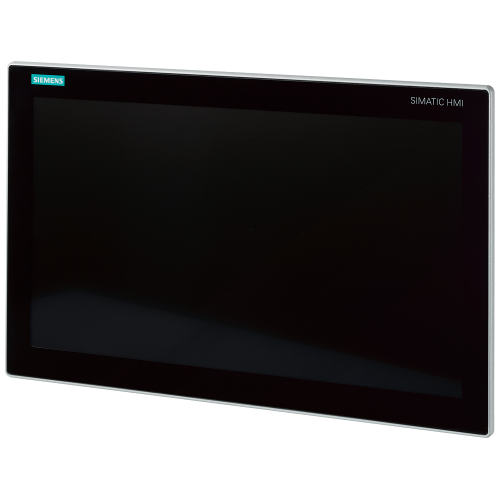

SIMATIC ITC1500 V3, Industrial Thin Client, 15" widescreen TFT display, capacitive Touch sensor, panel mount

Manufacturer's No: 6AV6646-1BA15-0AA0     Manufacturer: Siemens
SIMATIC ITC1500 V3, Industrial Thin Client, 15" widescreen TFT display, capacitive Touch sensor, panel mount

Availability Back Order

POA

This product has been superseded by

6AV66461BA150AA1

Please check compatibility before purchasing.

  • Model: SIMATIC ITC1500 V3
  • Industrial Thin Client with a 15" widescreen TFT display
  • Capacitive touch sensor
  • Supported protocols: RDP, VNC, SMARTSERVER HTML5, and others
  • Standard design for panel mount

Accessories

Follow-up article



Product

Manufacturer Material ID -
6AV6646-1BA15-0AA0
Net Weight -
5.61kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
5A992 / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Built-in depth -
73 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
2
Front build in possible -
STATFLAG -
B
Number of HW-interfaces Wireless -
0
Preinstalled operating system -
None
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
257 Millimetre
Max. main memory -
512 Megabyte
Number of buttons with LED -
0
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCI-slots -
0
Number of free PCMCIA-slots -
0
Number of function buttons -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces PS2 -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces SCSI -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Rack-assembly possible -
Recess depth -
73 Millimetre
Screen diagonal -
15.6 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Voltage type of supply voltage -
DC
Width of the front -
398 Millimetre
With hard disc -
With touch screen -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV66461BA150AA1

Please check compatibility before purchasing.
