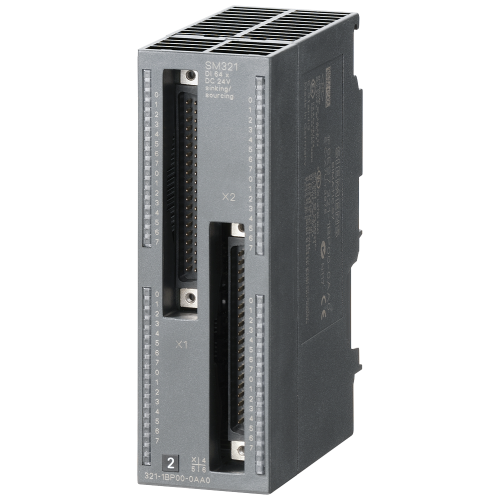

6ES73211BP000AA0

SM 321, 64 inputs, 24Vdc, Connection Cable and Term Block Required

Manufacturer's No: 6ES7321-1BP00-0AA0     Manufacturer: Siemens
SM 321, 64 inputs, 24Vdc, Connection Cable and Term Block Required

View 3D

Availability Back Order

POA
  • Product: SIMATIC S7-300 digital input module SM 321
  • Inputs: 64 digital inputs
  • Input Voltage: 24V DC
  • Isolation: Inputs isolated in groups of 16
  • Response Time: 3ms
  • Additional Requirements: Connection cable and terminal block (6ES7392-1.N00-0AA0 and cable 6ES7392-4...0-0AA0) required

Accessories



Product

Manufacturer Material ID -
6ES7321-1BP00-0AA0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
-
Siemens
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.2 Millisecond
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None

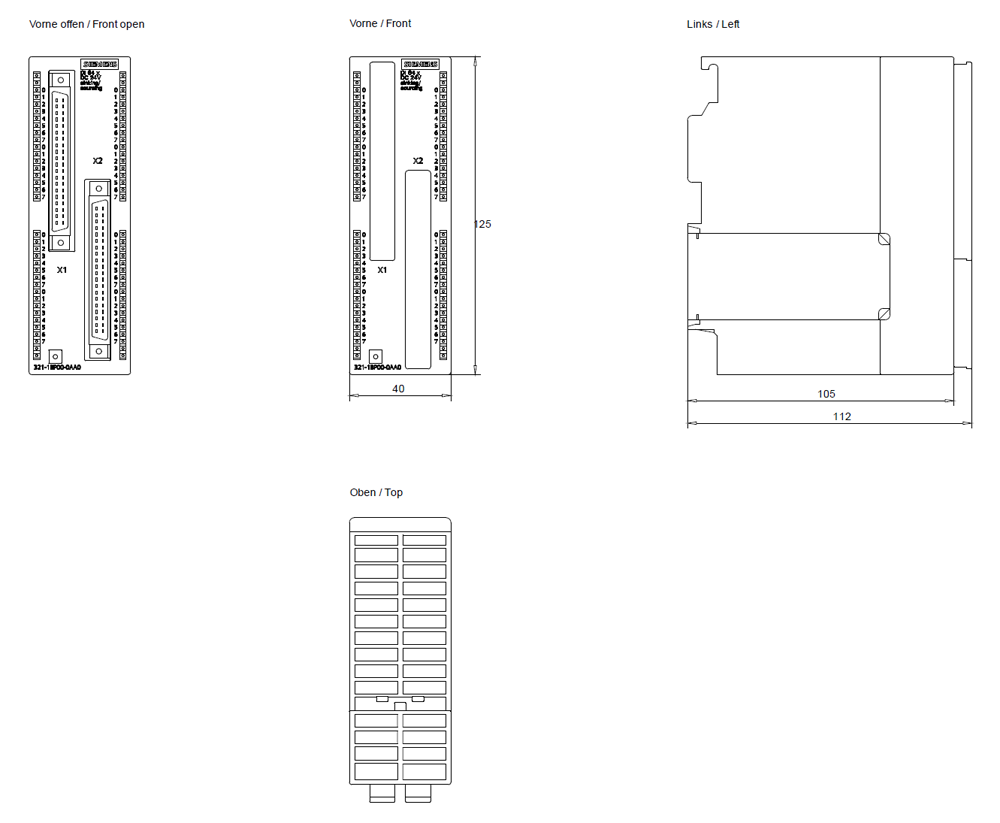

Depth -
112 Millimetre
Digital inputs configurable -
Height -
125 Millimetre
Input current at signal 1 -
4.2 Milliampere
Number of digital inputs -
64
Number of digital outputs -
0
Permitted voltage at input -
-30 Volt
Redundancy -
Supply voltage DC -
20.4 Volt
Time delay at signal change -
1.2 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
40 Millimetre

Availability Back Order

POA
