6ES71327GD300AB0

SIMATIC ET 200iSP 4DQ 25.5 V DC/22 mA SHUT DOWN L

Manufacturer's No: 6ES7132-7GD30-0AB0     Manufacturer: Siemens
SIMATIC ET 200iSP 4DQ 25.5 V DC/22 mA SHUT DOWN L

View 3D

Availability Back Order

£587.00
  • Electronic module for ET200iSP
  • 4 digital outputs (DQ)
  • Operating voltage: 25.5 V DC
  • Current: 22 mA
  • "L"-shutdown feature
  • Explosion protection: Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb
Product video
Product video


Product

Manufacturer Material ID -
6ES7132-7GD30-0AB0
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Input current at signal 1 -
- Milliampere
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Permitted voltage at input -
- Volt
Time delay at signal exchange -
1.5 Millisecond
Degree of protection (IP) -
IP30
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
None
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Explosion safety category for dust -
Other
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP30

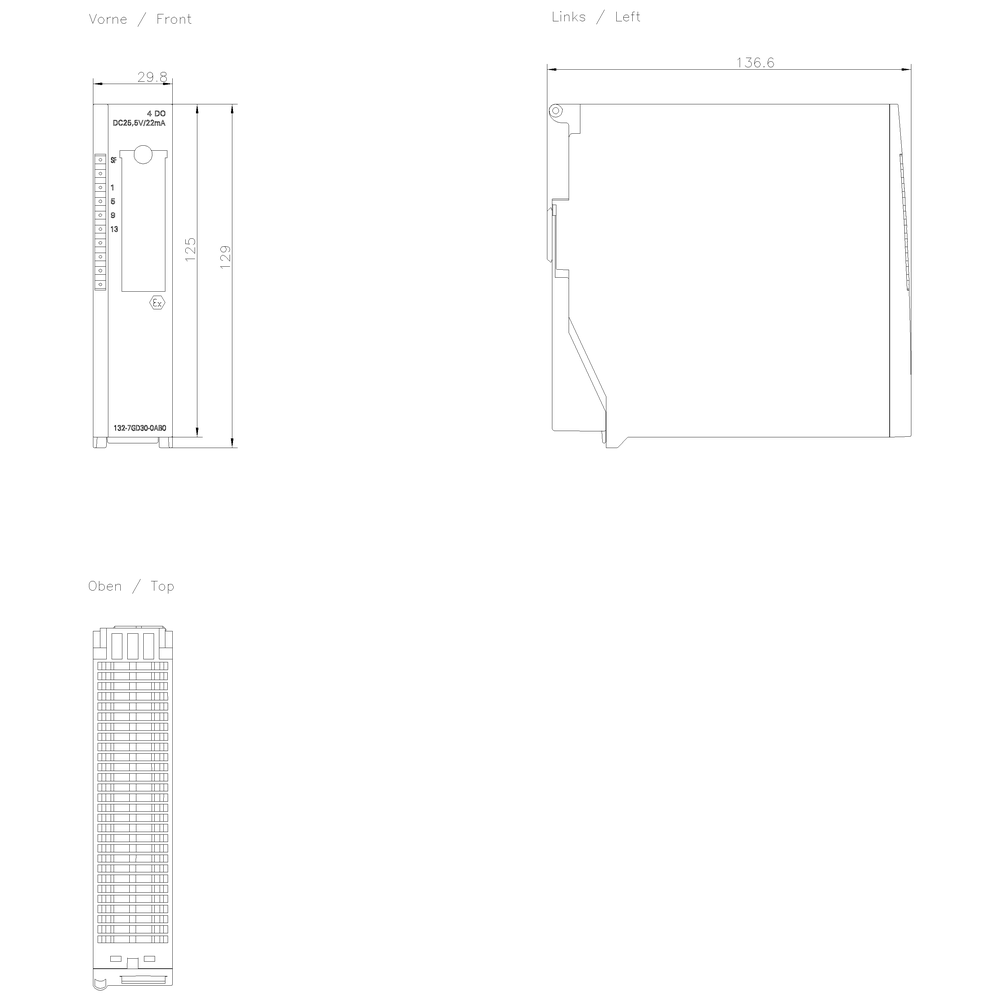

Depth -
136.5 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
129 Millimetre
Number of digital inputs -
0
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.022 Ampere
Permitted voltage at output -
0 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
System accessory -
Time delay at signal change -
1.5 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
30 Millimetre

Availability Back Order

£587.00
