6ES75211BH000AB0

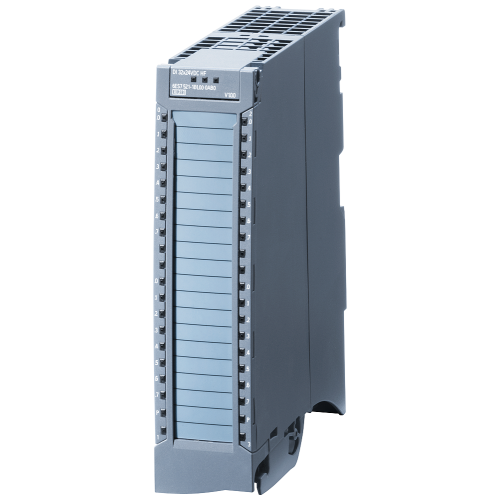

SIMATIC S7-1500 DI 16x24VDC HF 35 mm, with operating mode counter

Manufacturer's No: 6ES7521-1BH00-0AB0     Manufacturer: Siemens
SIMATIC S7-1500 DI 16x24VDC HF 35 mm, with operating mode counter

View 3D

Availability In Stock

£213.00
  • SIMATIC S7-1500 digital input module DI 16x24 V DC HF
  • 16 channels in groups of 16
  • 2 inputs can be used as counters
  • Input delay: 0.05 to 20 ms
  • Input type: 3 (IEC 61131)
  • Diagnostics available
  • Hardware interrupts supported
  • Front connector (screw terminals or push-in) to be ordered separately

Mandatory additional product

Accessories

Spare part



Product

Manufacturer Material ID -
6ES7521-1BH00-0AB0
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Output current -
- Ampere
Type of electric connection -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.05 Millisecond
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Depth -
129 Millimetre
Digital inputs configurable -
Height -
147 Millimetre
Input current at signal 1 -
2.5 Milliampere
Number of digital inputs -
16
Number of digital outputs -
0
Permitted voltage at input -
-30 Volt
Supply voltage DC -
19.2 Volt
Time delay at signal change -
0.05 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
35 Millimetre
