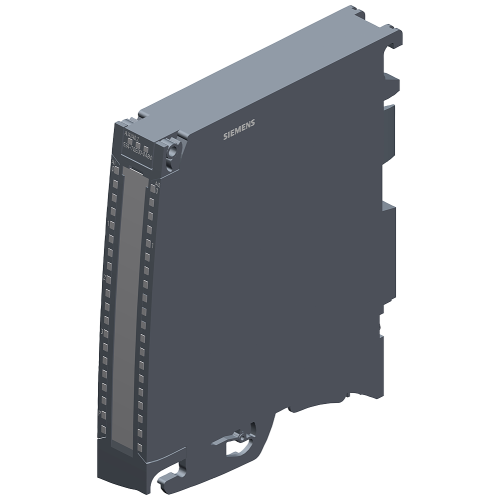

6ES75347QE000AB0

SIMATIC S7-1500 AI 4xU/I/RTD/TC /AQ 2xU/I ST 25 mm Incl. front connector push-in, power supply element, shield bracket, and shield

Manufacturer's No: 6ES7534-7QE00-0AB0     Manufacturer: Siemens
SIMATIC S7-1500 AI 4xU/I/RTD/TC /AQ 2xU/I ST 25 mm Incl. front connector push-in, power supply element, shield bracket, and shield terminal

View 3D

Availability In Stock

£622.00
  • SIMATIC S7-1500 Analog input/output module
  • AI 4x U/I/R/RTD/TC ST
  • 4 channels in groups of 4
  • AQ 2x U/I ST
  • 2 channels in groups of 2
  • Hardware interrupts
  • Common mode voltage approx. 10 V
  • 16-bit resolution
  • Accuracy: 0.3%
  • Delivery includes push-in front connector, infeed element, shield bracket, and shield terminal

Mandatory additional product

Accessories

Spare part



Product

Manufacturer Material ID -
6ES7534-7QE00-0AB0
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Other
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Analogue inputs configurable -
Analogue outputs configurable -
Depth -
129 Millimetre
Explosion safety category for dust -
None
Height -
147 Millimetre
Input signal, configurable -
Input, current -
Input, resistance thermometer -
Input, resistor -
Input, thermocouple -
Input, voltage -
Number of analogue inputs -
4
Number of analogue outputs -
2
Output signal configurable -
Output, current -
Output, voltage -
Resolution of the analogue inputs -
16 Bit
Resolution of the analogue outputs -
16 Bit
Width -
25 Millimetre
