6DL11316BL000PH1

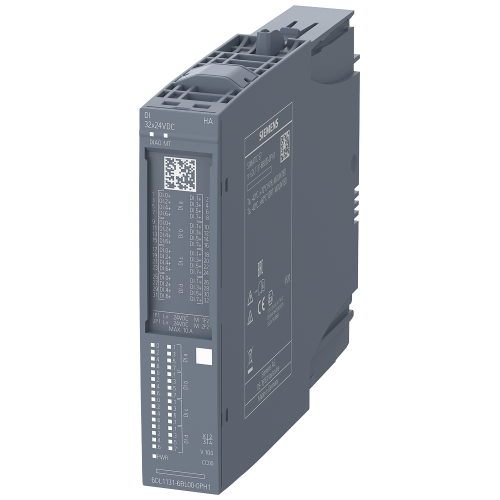

SIMATIC ET 200SP HA, digital input module, DI 32X24VDC HA, suitable for terminal block, H1, P0, color code CC00, channel diagnosti

Manufacturer's No: 6DL1131-6BL00-0PH1     Manufacturer: Siemens
SIMATIC ET 200SP HA, digital input module, DI 32X24VDC HA, suitable for terminal block, H1, P0, color code CC00, channel diagnostics

Availability Back Order

£768.00
  • SIMATIC ET 200SP HA digital input module
  • 32 digital inputs
  • Input voltage: 24VDC
  • Suitable for terminal block H1, P0
  • Color code: CC00
  • Channel diagnostics included

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1131-6BL00-0PH1
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Time delay at signal exchange -
- Millisecond
Output current -
- Ampere
Type of electric connection -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Degree of protection (IP rating) -
IP20
Depth -
138 Millimetre
Digital inputs configurable -
Front built-in possible -
Height -
115 Millimetre
Input current at signal 1 -
2.5 Milliampere
Number of digital inputs -
32
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Rack-assembly possible -
Rail mounting possible -
Supply voltage DC -
19.2 Volt
System accessory -
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre

Availability Back Order

£768.00
