6DL11346TH000PH1

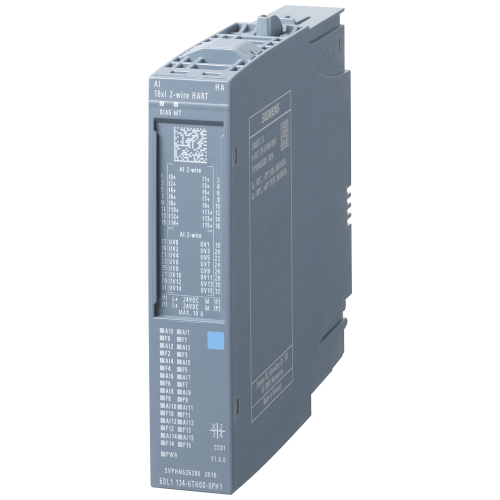

SIMATIC ET 200SP HA, analog HART input module, AI 16XI 2-wire HART HA, suitable for terminal block H

Manufacturer's No: 6DL1134-6TH00-0PH1     Manufacturer: Siemens
SIMATIC ET 200SP HA, analog HART input module, AI 16XI 2-wire HART HA, suitable for terminal block H

Availability In Stock

£2,726.00
  • SIMATIC ET 200SP HA analog HART input module
  • AI 16XI 2-wire HART HA
  • Suitable for terminal block H1, M1
  • Color code CC01
  • Channel diagnostics
  • 16-bit resolution
  • Accuracy: +/-0.1%

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1134-6TH00-0PH1
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Type of electric connection -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
138 Millimetre
Front built-in possible -
Height -
115 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
16
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre

Availability In Stock

£2,726.00
