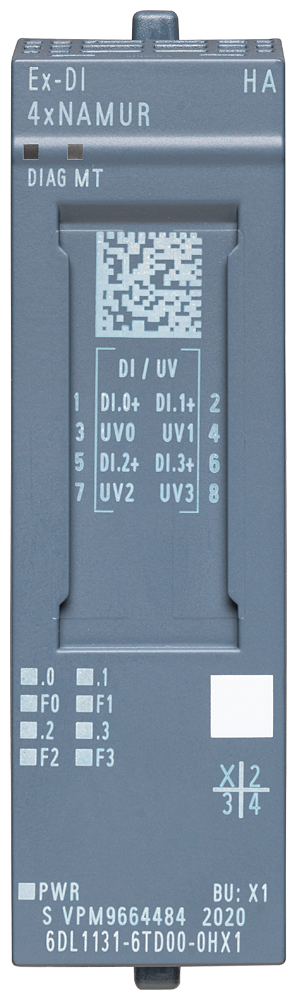

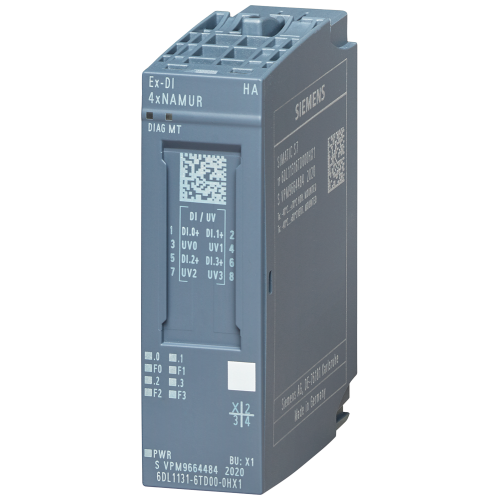

6DL11316TD000HX1

SIMATIC ET 200SP HA, ET 200SP, digital ex-i input module, DI 4xNAMUR, suitable for BaseUnit type X1, channel diagnostics

Manufacturer's No: 6DL1131-6TD00-0HX1     Manufacturer: Siemens

Availability Back Order

£301.00
  • SIMATIC ET 200SP HA
  • ET 200SP digital ex-i input module
  • DI 4xNAMUR
  • Suitable for BaseUnit type X1
  • Channel diagnostics

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1131-6TD00-0HX1
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital inputs configurable -
Front built-in possible -
Height -
73 Millimetre
Number of digital inputs -
4
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
System accessory -
Type of digital output -
None
Type of voltage (input voltage) -
DC
Width -
20 Millimetre

Availability Back Order

£301.00
