6DL11366AA000PH1

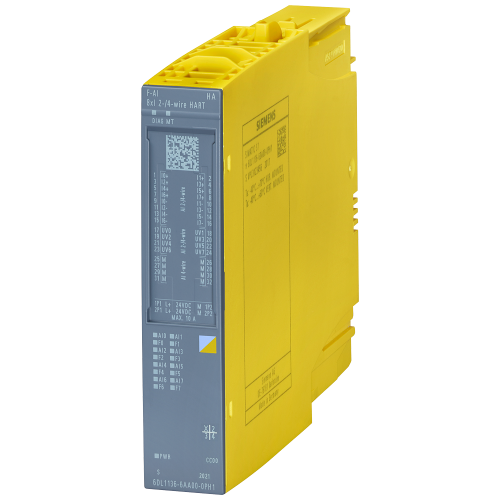

ET 200SP HA, F-AI 8xI 2-/4-wire HART HA

Manufacturer's No: 6DL1136-6AA00-0PH1     Manufacturer: Siemens
ET 200SP HA, F-AI 8xI 2-/4-wire HART HA

Availability On Request

£2,637.00
  • SIMATIC ET 200SP HA analog input module
  • Safety-oriented F-AI 8xI 2-wire/4-wire HART HA
  • 16-bit resolution
  • SIL3 (IEC 61508) certified
  • Up to PL e (ISO 13849-1) compliant
  • Suitable for terminal block H1, F1
  • Color code: CC00
  • Channel diagnostics included

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1136-6AA00-0PH1
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A991X
UNSPSC -
32151705

Technical Specification

Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
138 Millimetre
Front built-in possible -
Height -
115 Millimetre
Input signal, configurable -
Input, current -
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFIsafe -
System accessory -
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre

Availability On Request

£2,637.00
