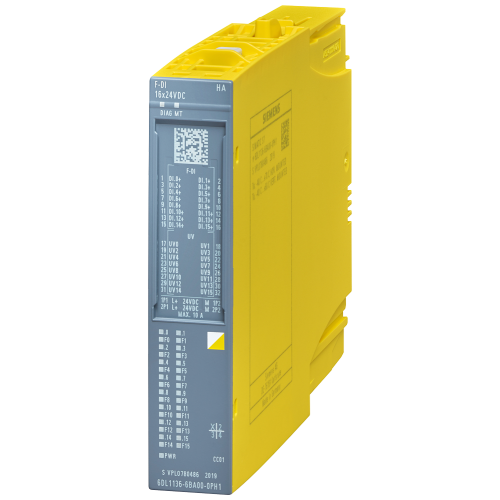

6DL11366BA000PH1

SIMATIC ET 200SP HA, digital input module, safety-oriented F-DI 16X24VDC HA, SIL3 (IEC 61508), up to PL E (ISO 13849-1) suitable f

Manufacturer's No: 6DL1136-6BA00-0PH1     Manufacturer: Siemens
SIMATIC ET 200SP HA, digital input module, safety-oriented F-DI 16X24VDC HA, SIL3 (IEC 61508), up to PL E (ISO 13849-1) suitable for terminal block H1, M1, color code CC01, channel diagnostics

Availability Back Order

£1,651.00
  • SIMATIC ET 200SP HA digital input module
  • Safety-oriented F-DI 16X24VDC HA
  • SIL3 (IEC 61508) certified
  • Up to PL E (ISO 13849-1) compliant
  • Suitable for terminal block H1, M1
  • Color code: CC01
  • Channel diagnostics included

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1136-6BA00-0PH1
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Depth -
138 Millimetre
Digital inputs configurable -
Height -
115 Millimetre
Input current at signal 1 -
2.5 Milliampere
Number of digital inputs -
16
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Time delay at signal change -
0.4 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre

Availability Back Order

£1,651.00
