6DL11366DA000PH1

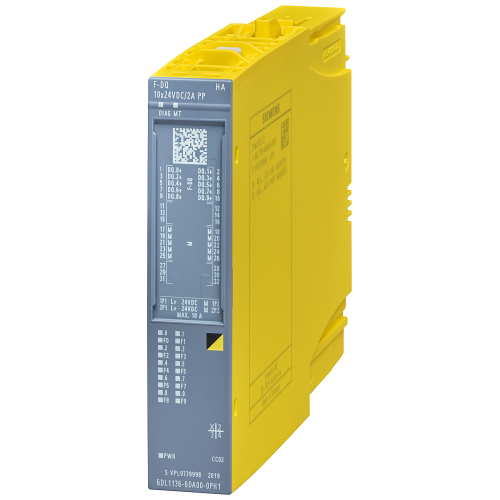

SIMATIC ET 200SP HA F-DQ 10X24VDC/2A PP HA

Manufacturer's No: 6DL1136-6DA00-0PH1     Manufacturer: Siemens
SIMATIC ET 200SP HA F-DQ 10X24VDC/2A PP HA

Availability Back Order

£2,348.00
  • SIMATIC ET 200SP HA digital output module
  • Safety-oriented F-DQ 10X24VDC/2A HA
  • SIL3 (IEC 61508) certified
  • Up to PL e (ISO 13849-1) compliant
  • Suitable for terminal blocks H1, M1 with color code CC02
  • Channel diagnostics included

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1136-6DA00-0PH1
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Depth -
138 Millimetre
Digital outputs configurable -
Height -
115 Millimetre
Number of digital inputs -
0
Number of digital outputs -
10
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
2 Ampere
Permitted voltage at output -
0 Volt
Short-circuit protection, outputs available -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
System accessory -
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre

Availability Back Order

£2,348.00
