3RK13080CA000CP0

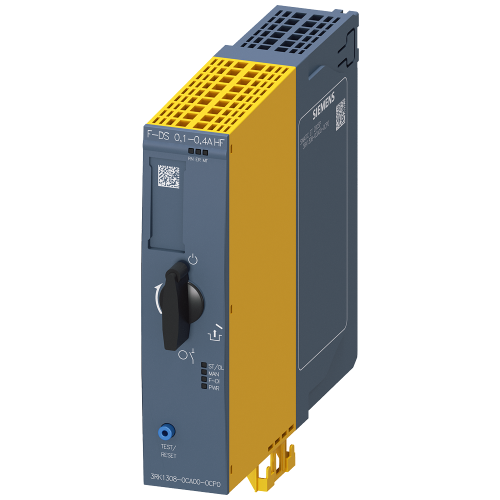

Fail-safe direct-on-line starter ET 200SP, up to 0.12 kW / 400 V, 0.1 - 0.4 A

Manufacturer's No: 3RK1308-0CA00-0CP0     Manufacturer: Siemens
Fail-safe direct-on-line starter ET 200SP, up to 0.12 kW / 400 V, 0.1 - 0.4 A

Availability On Request

£284.78
  • Fail-safe direct-on-line starter
  • Electronic switching
  • Electronic overload protection up to 0.09 kW / 400 V
  • Adjustment range: 0.1 to 0.4 A
  • PROFIenergy supported
  • Option for 3DI/LC module

Mandatory additional product

Selectable mandatory product

Accessories

Presentation video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Product video


Product

Manufacturer Material ID -
3RK1308-0CA00-0CP0
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
UNSPSC -
39121521

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of command positions -
-
Number of auxiliary contacts as normally open contact -
-
Number of auxiliary contacts as normally closed contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Release class -
UN
Type of electrical connection of main circuit -
UN
Type of electrical connection for auxiliary- and control current circuit -
UN
Kind of motor starter -
UN
Rated power, 460 V, 60 Hz, 3-phase -
- Kilowatt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated operation current at AC-3, 400 V -
- Ampere
Ambient temperature, upper operating limit -
- Degrees celsius
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Coordination class according to IEC 60947-4-3 -
Class 1
Degree of protection (IP rating) -
IP20
Depth -
150 Millimetre
External reset possible -
Height -
142 Millimetre
Number of indicator lights -
7
Overload release current setting -
0.1 Ampere
Rated operation current Ie -
0.4 Ampere
Rated operation power at AC-3, 230 V, 3-phase -
0.16 Kilowatt
Voltage type for actuating -
DC
Width -
30 Millimetre
With short-circuit release -

Availability On Request

£284.78
