6GK75426VX000XE0

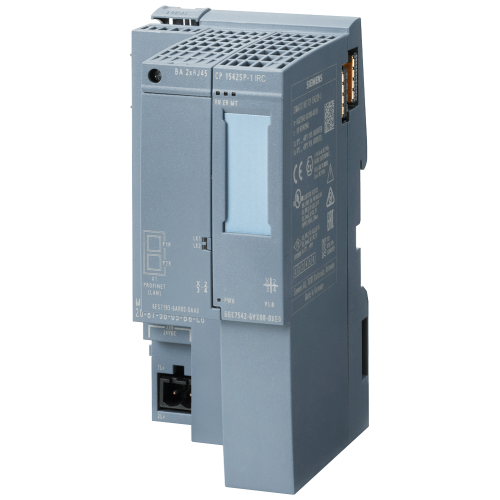

Communications processor CP 1542SP-1 IRC, connection SIMATIC S7-ET 200SP to IE

Manufacturer's No: 6GK7542-6VX00-0XE0     Manufacturer: Siemens
Communications processor CP 1542SP-1 IRC, connection SIMATIC S7-ET 200SP to IE

Availability Back Order

£908.00
  • Communications Processor CP 1542SP-1 IRC for connecting SIMATIC S7-ET 200SP to Industrial Ethernet
  • Supports SINAUT ST7, TeleControl Server Basic, IEC 60870-5-104, and DNP3 protocols for communication with control center
  • Open IE communication protocols: TCP/IP, ISO-on-TCP, UDP
  • Features IP broadcast/multicast, SNMPV1, DHCP, secure email, IPv4/IPv6
  • Supports SINEMA Remote Connect with autoconfiguration
  • Time-of-day synchronization via NTP
  • Access to CPU web server
  • Requires BusAdapter for operation

Accessories



Product

Manufacturer Material ID -
6GK7542-6VX00-0XE0
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
0
Performance level acc. EN ISO 13849-1 -
None
Transmission rate -
100000000 kiloBit/second
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Depth -
74 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
117 Millimetre
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Type of data transmission -
Other
Width -
60 Millimetre

Availability Back Order

£908.00
