6DL11346TB000HX1

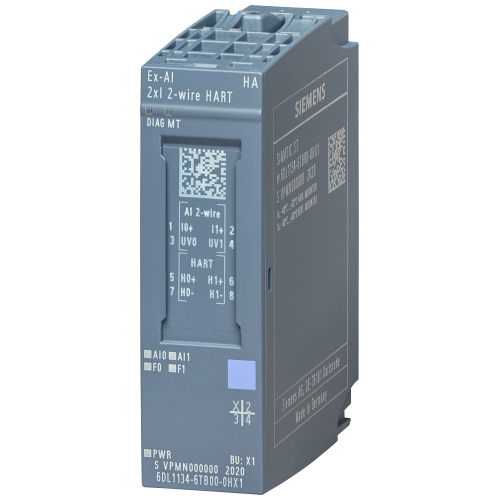

SIMATIC ET 200SP HA/ET 200SP Ex-AI 2xI 2-wire HART

Manufacturer's No: 6DL1134-6TB00-0HX1     Manufacturer: Siemens
SIMATIC ET 200SP HA/ET 200SP Ex-AI 2xI 2-wire HART

Availability Back Order

£431.00
  • SIMATIC ET 200SP HA analog ex-i HART input module
  • Ex-AI 2xI 2-Wire HART
  • Suitable for BaseUnit type X1
  • Channel diagnostics included
  • 16-bit resolution
  • Accuracy of +/-0.3%

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6DL1134-6TB00-0HX1
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Analogue inputs configurable -
Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Front built-in possible -
Height -
73 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
2
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
System accessory -
Width -
20 Millimetre

Availability Back Order

£431.00
