6FE12426TM200BB1

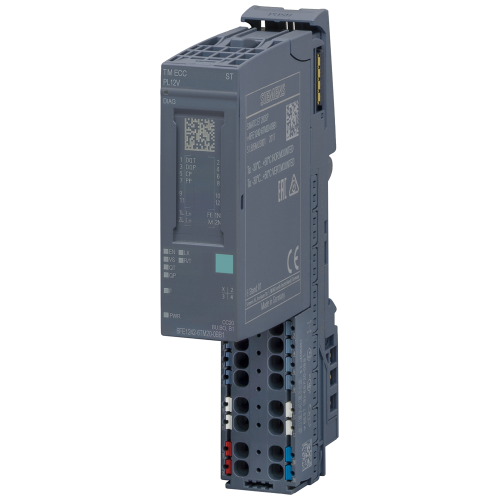

SIMATIC ET 200SP ECC PL ST Technology module of the ET 200SP product family

Manufacturer's No: 6FE1242-6TM20-0BB1     Manufacturer: Siemens
SIMATIC ET 200SP ECC PL ST Technology module of the ET 200SP product family

Availability On Request

£702.00
  • Load controller for conductive charging of electric vehicles
  • Complies with DIN SPEC 70121 / ISO15118 charge operating mode 4 CCS
  • Operating temperature range: -30°C to 60°C
  • Includes Control Pilot with Powerline Green Phy
  • Features Plug Present / Proximity Pilot
  • Equipped with Digital Out TRIP function as open collector
  • Digital Out (DQ P) available as open collector
  • Compatible with BU type BU20-P12+A0+4B or BU type BU20-P12+A4+0B

Selectable mandatory product



Product

Manufacturer Material ID -
6FE1242-6TM20-0BB1
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
39121521

Technical Specification

Energy consumption -
- Watt
Max. number of addressable charging points -
-
Loading current -
- Ampere
Nominal voltage -
24 Volt
Depth -
58 Millimetre
Height -
73 Millimetre
Width -
20 Millimetre
With communication interface -

Availability On Request

£702.00
