6GK59912VA008AA2

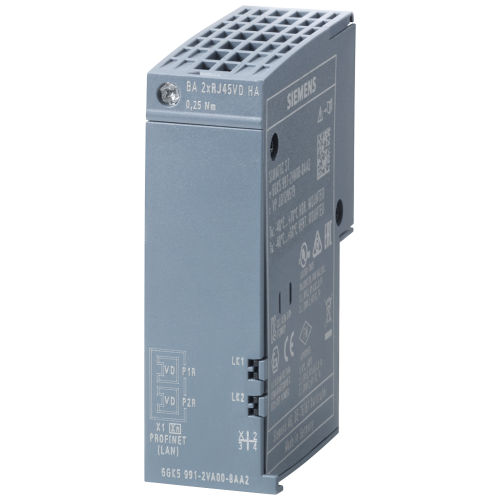

Bus adapter VD (variable distance) BA 2xRJ45VD HA, 2x RJ45, CC

Manufacturer's No: 6GK5991-2VA00-8AA2     Manufacturer: Siemens
Bus adapter VD (variable distance) BA 2xRJ45VD HA, 2x RJ45, CC

Availability Back Order

£321.00
  • Bus adapter VVD for Ethernet communication
  • 2x RJ45 sockets for industrial Ethernet and PROFINET
  • Variable Distance feature for 2-, 4-, or 8-wire copper cables
  • Extended temperature range: -40°C to +70°C
  • Conformal coating for added protection
  • Installation altitude up to 4000m
  • Distances supported:
    • 2-wire: up to 1000m at 10 Mbit/s
    • 2-wire: up to 100m at 100 Mbit/s
    • 4-wire: up to 300m at 100 Mbit/s
    • 8-wire: up to 500m at 100 Mbit/s
  • 2-wire: up to 1000m at 10 Mbit/s
  • 2-wire: up to 100m at 100 Mbit/s
  • 4-wire: up to 300m at 100 Mbit/s

Read more

  • 8-wire: up to 500m at 100 Mbit/s


Product

Manufacturer Material ID -
6GK5991-2VA00-8AA2
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85177000
Country of Origin -
DE
UNSPSC -
43191501

Technical Specification

Width -
- Millimetre
Height -
- Millimetre
Depth -
- Millimetre
Construction type -
UN
Number of ports 10 Mbps BNC -
-
Number of ports 10 Mbps AUI -
-
Number of ports 10 Mbps of ST -
-
Number of ports 100 Mbps SC -
-
Number of ports 1000 Mbps SC -
-
Number of ports ISDN WAN -
-
Number of ports 100 Mbps MT RJ -
-
Number of ports 1000 Mbps of MT RJ -
-
Number of ports 10 Mbps RJ45 -
-
Number of ports 10 Gbps LC (LX) -
-
Number of ports 10 Gbps LC (SX) -
-
Number of ports 10/100 Mbps M12 -
-
Number of ports 10/100/1000 Mbps RJ45 -
-
Number of ports 100/1000 Mbps RJ45 -
-
Number of ports 1000 Mbps LC (LX) -
-
Number of ports 1000 Mbps LC (SX) -
-
Number of combination-ports RJ45/Mini GBIC -
-
Number of ports 10 Gbps LC (SR) -
-
Number of ports 10 Gbps LC (LR) -
-
Wavelength -
- Millimetre
Number of ports 10/100 Mbps RJ45 -
2

Availability Back Order

£321.00
