6ES71426BG000BB0

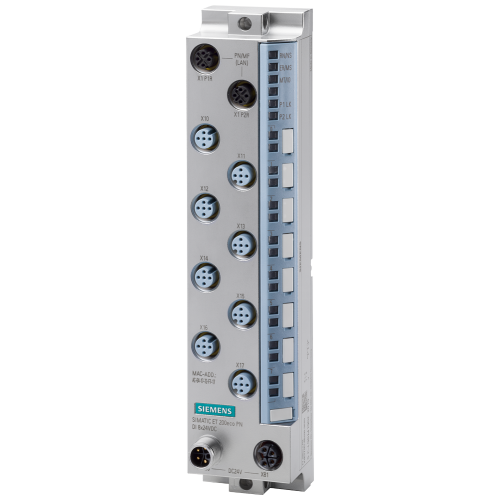

SIMATIC ET 200eco PN DQ 8x24VDC/0.5A, M12-L 8x M12

Manufacturer's No: 6ES7142-6BG00-0BB0     Manufacturer: Siemens
SIMATIC ET 200eco PN DQ 8x24VDC/0.5A, M12-L 8x M12

Availability Back Order

£242.00
  • SIMATIC ET 200eco PN
  • 8 digital outputs: 24 V DC, 0.5 A
  • M12-L connectors: 8x M12
  • Single and double assignment capability
  • Source output: PNP, switching to P potential
  • Substitute value output
  • Channel diagnostics for wire break and short-circuit
  • Shared device with 2 controllers
  • 0.25 ms isochronous mode
  • Prioritized startup

Read more

  • Supported protocols: PN IO, Ethernet IP, Modbus TCP
  • Redundancy features: MSO, MRP, S2
  • I&M0...3 compatibility
  • Multi-fieldbus support
  • Degree of protection: IP67 / IP69K

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7142-6BG00-0BB0
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Type of voltage (input voltage) -
UN
Type of electric connection -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.05 Millisecond
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
1
Front build in possible -
Depth -
48 Millimetre
Digital outputs configurable -
Front built-in possible -
Height -
200 Millimetre
Number of digital inputs -
0
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at output -
0 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Time delay at signal change -
0.05 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
45 Millimetre

Availability Back Order

£242.00
