6ES71436BH000BB0

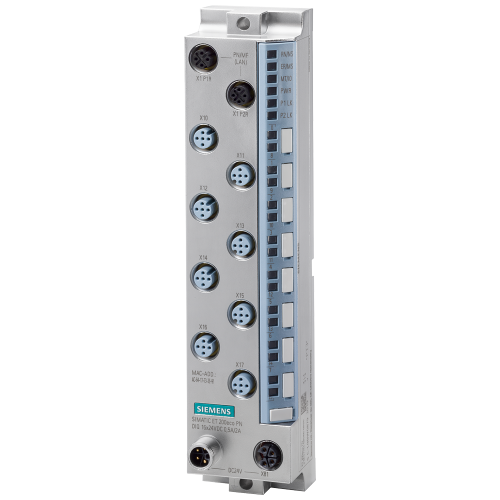

SIMATIC ET 200eco PN DIQ 16x 24VDC/0.5A/2A, M12-L 8x M12

Manufacturer's No: 6ES7143-6BH00-0BB0     Manufacturer: Siemens
SIMATIC ET 200eco PN DIQ 16x 24VDC/0.5A/2A, M12-L 8x M12

Availability Back Order

£358.00
  • SIMATIC ET 200eco PN
  • 16 digital inputs: 24 V DC, 0.5 A/2 A
  • M12-L connectors: 8x M12
  • Input type: 3 (IEC 61131)
  • Input signal: sink input (PNP)
  • Input delay: 0.05 to 20 ms
  • Output signal: source output (PNP, switching to P potential)
  • Channel diagnostics for wire break at input, encoder power supply short-circuit, short-circuit at output
  • Features prioritized startup, MSI, MSO, MRP, S2 redundancy
  • Supports I&M0 to I&M3

Read more

  • Compatible with multi-fieldbus, PN IO, Ethernet IP, Modbus TCP
  • Degree of protection: IP67/IP69K

Accessories

AS-i accessory M12 cover for IP67 modules

Product Code - 3RK19011KA00
Price £1.09
In Stock
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7143-6BH00-0BB0
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151705

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.05 Millisecond
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
1
Front build in possible -
STATFLAG -
B
Type of electric connection -
Other
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP65/IP67
Depth -
48 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Front built-in possible -
Height -
200 Millimetre
Input current at signal 1 -
2.4 Milliampere
Number of digital inputs -
16
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-3 Volt
Permitted voltage at output -
0 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Time delay at signal change -
0.05 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
45 Millimetre
