6ES71446JF000BB0

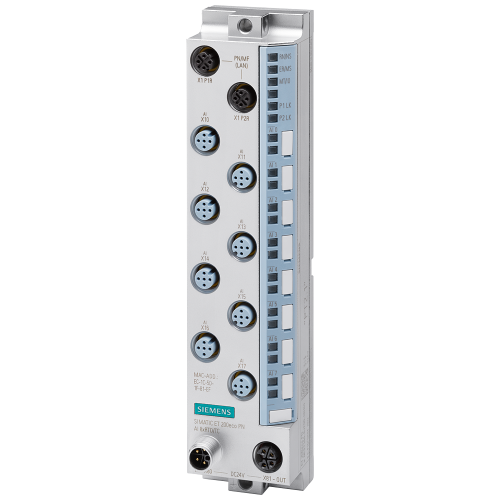

SIMATIC ET 200eco PN AI 8xRTD/TC, M12-L 8x M12

Manufacturer's No: 6ES7144-6JF00-0BB0     Manufacturer: Siemens
SIMATIC ET 200eco PN AI 8xRTD/TC, M12-L 8x M12

Availability Available to order

£446.00
  • SIMATIC ET 200eco PN
  • Analog Input Module: 8 channels for RTD/TC sensors
  • Measurement Resolution: 16-bit
  • Channel Diagnostics: Detects wire break at input
  • Shared Device: Compatible with 2 controllers
  • Startup Prioritization
  • Supported Protocols: MSI, MRP, S2 redundancy, I&M0...3
  • Multi-Fieldbus Support: PN IO, Ethernet IP, Modbus TCP
  • Degree of Protection: IP67 / IP69K

Accessories

Spare part

Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7144-6JF00-0BB0
Net Weight -
0.82kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Analogue inputs configurable -
Depth -
48 Millimetre
Front built-in possible -
Height -
200 Millimetre
Input signal, configurable -
Input, resistance thermometer -
Input, resistor -
Input, thermocouple -
Input, voltage -
Number of analogue inputs -
8
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFINET IO -
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
45 Millimetre

Availability Available to order

£446.00
