6ES71466HF000BB0

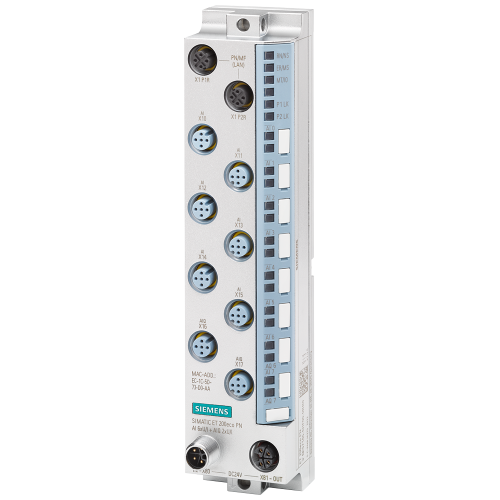

SIMATIC ET 200eco PN AI 6xU/I + AIQ 2xU/I 8x M12

Manufacturer's No: 6ES7146-6HF00-0BB0     Manufacturer: Siemens
SIMATIC ET 200eco PN AI 6xU/I + AIQ 2xU/I 8x M12

Availability Back Order

£446.00
  • SIMATIC ET 200eco PN
  • Analog Input: 6x U/I + Analog Input Qualifier: 2x U/I
  • M12-L connectors
  • 8x M12 connectors
  • 16-bit resolution
  • Channel diagnostics for wire break and short-circuit
  • Shared device with 2 controllers
  • Prioritized startup
  • Support for MSI, MSO, MRP, S2 redundancy
  • I&M0...3 compatibility

Read more

  • Multi-fieldbus support
  • Communication protocols: PROFINET IO, Ethernet IP, Modbus TCP
  • Degree of protection: IP67 / IP69K

Accessories

Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7146-6HF00-0BB0
Net Weight -
0.81kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
9N9999 / N
UNSPSC -
32151705

Technical Specification

Analogue inputs configurable -
Analogue outputs configurable -
Degree of protection (IP rating) -
IP65/IP67
Depth -
48 Millimetre
Explosion safety category for dust -
Other
Explosion safety category for gas -
Other
Front built-in possible -
Height -
200 Millimetre
Input signal, configurable -
Input, current -
Input, voltage -
Number of analogue inputs -
8
Number of analogue outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Output, voltage -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Resolution of the analogue outputs -
16 Bit
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for other bus systems -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of electric connection -
Plug-in connection
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
45 Millimetre

Availability Back Order

£446.00
