6ES71424BF000AA0

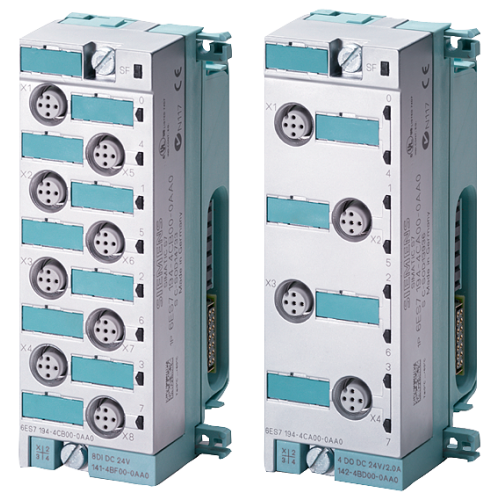

EM142, 8 x digital outputs, 24V / 0.5A electronic module, (terminal type A or B or C required)

Manufacturer's No: 6ES7142-4BF00-0AA0     Manufacturer: Siemens
EM142, 8 x digital outputs, 24V / 0.5A electronic module, (terminal type A or B or C required)

View 3D

Availability In Stock

£113.00
  • SIMATIC DP Electronic modules for ET 200 PRO
  • 8 digital outputs
  • 24 V DC, 0.5 A
  • Module diagnostics included
  • Includes bus module
  • Connection module IO 6ES7194-4..00-0AA0 (order separately)

Mandatory additional product

Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7142-4BF00-0AA0
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level d
STATFLAG -
B
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP65/IP67
Performance level acc. to EN ISO 13849-1 -
Level d
Depth -
35 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
130 Millimetre
Number of digital inputs -
0
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at output -
0 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
SIL according to IEC 61508 -
2
Supply voltage DC -
20.4 Volt
System accessory -
Type of digital output -
Transistor
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
45 Millimetre

Availability In Stock

£113.00
