6ED10521MD080BA2

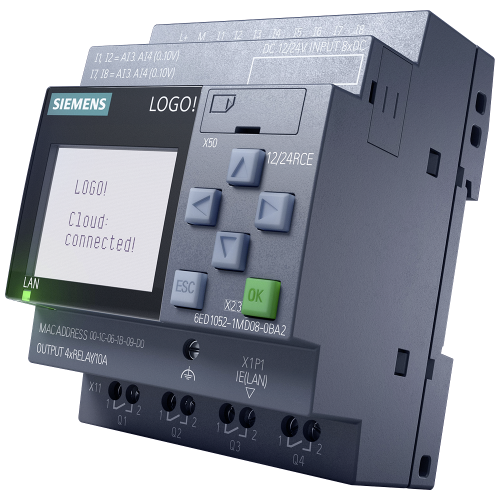

LOGO! 12/24RCE - 8 digital Inputs 12/24Vdc / 4 digital outputs Relay (10A) (V8.4)

Manufacturer's No: 6ED1052-1MD08-0BA2     Manufacturer: Siemens
LOGO! 12/24RCE - 8 digital Inputs 12/24Vdc / 4 digital outputs Relay (10A) (V8.4)

Availability In Stock

£134.00
  • Model: LOGO! 12/24RCE
  • Power Supply: 12/24 V DC
  • Inputs: 8 DI (4 AI)
  • Outputs: 4 DO
  • Memory: 400 blocks
  • Expandable
  • Communication: Ethernet
  • Features: Integrated web server, data log
  • User-friendly: User-defined web pages
  • Compatibility: Standard microSD card for LOGO! Soft Comfort V8.4 or higher

Read more

  • Connectivity: Cloud connection, MQTT in all LOGO! 8.4 basic units
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ED1052-1MD08-0BA2
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

Basic device -
Degree of protection (IP rating) -
IP20
Depth -
60 Millimetre
Display -
Expandable -
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Front built-in possible -
Height -
90 Millimetre
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of digital inputs -
8
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Supply voltage DC -
10.8 Volt
Supporting protocol for LON -
Supporting protocol for TCP/IP -
Switching current -
10 Ampere
Wall mounting/direct mounting -
Width -
71.5 Millimetre
With relay output -
With timer -

Availability In Stock

£134.00
