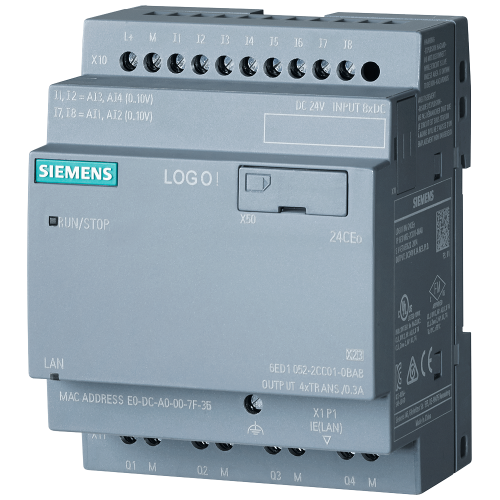

LOGO! 24CEo - 8 digital Inputs 24Vdc / 4 digital outputs 24Vdc (V8.4)

Manufacturer's No: 6ED1052-2CC08-0BA2     Manufacturer: Siemens

Availability Back Order

£103.00
  • Model: LOGO! 24CEo
  • Logic module without display
  • Power supply / I/O: 24 V/24 V/24 V trans.
  • 8 DI (4 AI)/4 DO
  • Supports up to 400 blocks
  • Modularly expandable
  • Features Ethernet connectivity
  • Integrated web server for data logging
  • User-defined web pages
  • Compatible with standard microSD card for LOGO! Soft Comfort V8.4 or higher

Read more

  • Supports execution of older projects
  • Cloud connection capability
  • MQTT available in all LOGO! 8.4 basic units
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ED1052-2CC08-0BA2
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

Basic device -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Expandable -
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Front built-in possible -
Height -
90 Millimetre
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of digital inputs -
8
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for LON -
Supporting protocol for TCP/IP -
Switching current -
0.3 Ampere
Wall mounting/direct mounting -
Width -
71.5 Millimetre
With timer -

Availability Back Order

£103.00
