6ES79240CA200BA0

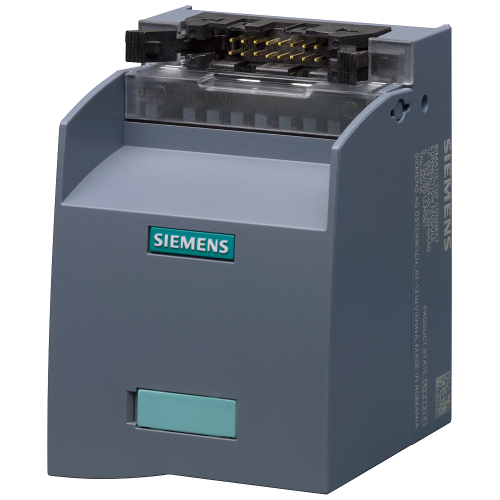

Connection module 8 I/O digital 3-conductor-connection, screw terminals with LED

Manufacturer's No: 6ES7924-0CA20-0BA0     Manufacturer: Siemens
Connection module 8 I/O digital 3-conductor-connection, screw terminals with LED

View 3D

Availability Back Order

£42.00
  • Connection module TP3
  • 8 channels
  • 2x10 terminals
  • Screw terminal with LED for potential supply
  • 16 pole IDC connector for cable
Product video


Product

Manufacturer Material ID -
6ES7924-0CA20-0BA0
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
RO
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121402

Technical Specification

-
Siemens
Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Length -
76 Millimetre
Operation temperature -
0 Degrees celsius
Width/grid dimension -
57 Millimetre
Height at lowest possible mounting height -
60 Millimetre
Connection position -
Above
Mounting method -
DIN rail (top hat rail) 35 mm
LED switching for -
No
Colour -
Grey
Colour lamp -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section multi-wired -
0.5 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V1
Material insulation body -
Other
Number of clamp positions per level -
1
Number of levels -
1
Operating temperature -
0 Degrees celsius
Rated current In -
1 Ampere
Rated voltage -
24 Volt
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Screw connection
With power supply function -

Availability Back Order

£42.00
