6ES73317NF100AB0

SM 331, 8 analogue inputs, 16 bit resolution, 4 channel mode, 40 Pin Connector Required

Manufacturer's No: 6ES7331-7NF10-0AB0     Manufacturer: Siemens
SM 331, 8 analogue inputs, 16 bit resolution, 4 channel mode, 40 Pin Connector Required

View 3D

Availability Back Order

£1,240.00
  • SIMATIC S7-300 Analog input module SM 331
  • Isolated module with 8 analog inputs
  • Input ranges: +/-5V, +/-10V, 1-5V, +/-20mA, 0-20mA
  • Resolution: 16 bit
  • Single rooting with 60V common mode
  • 4-channel operation: 10ms
  • 8-channel operation: 23-95ms
  • 40-pole connector

Accessories



Product

Manufacturer Material ID -
6ES7331-7NF10-0AB0
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue inputs configurable -

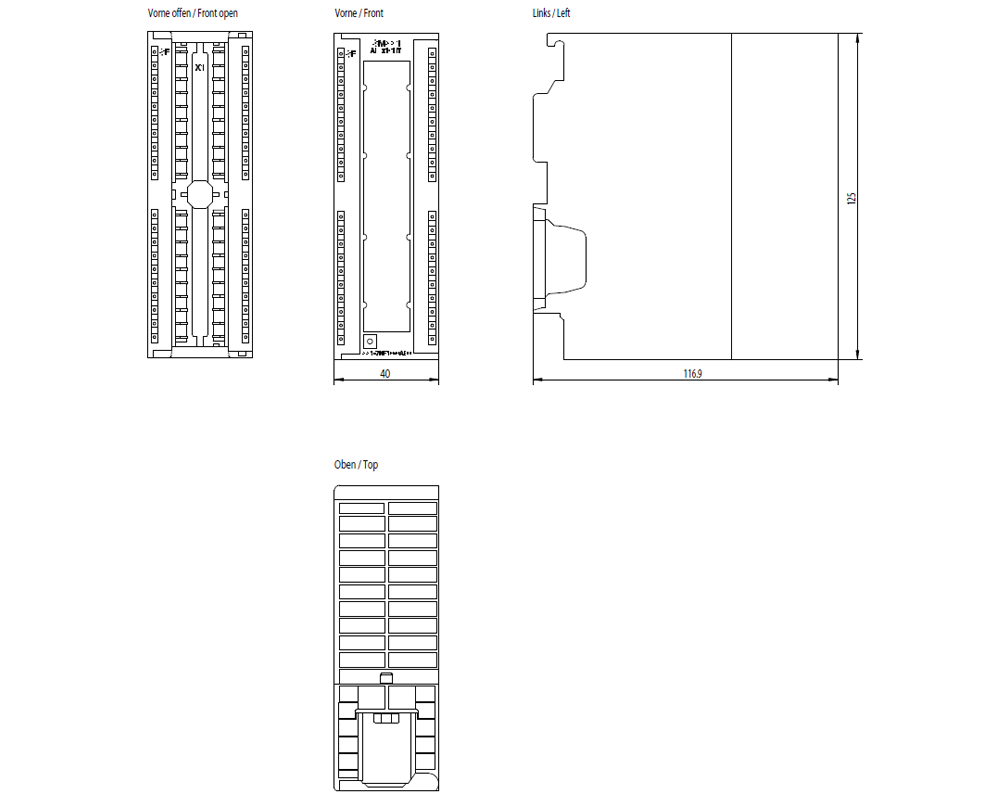

Depth -
117 Millimetre
Height -
125 Millimetre
Input signal, configurable -
Input, current -
Input, voltage -
Number of analogue inputs -
8
Number of analogue outputs -
0
Resolution of the analogue inputs -
16 Bit
Width -
40 Millimetre

Availability Back Order

£1,240.00
