6ES73550VH100AE0

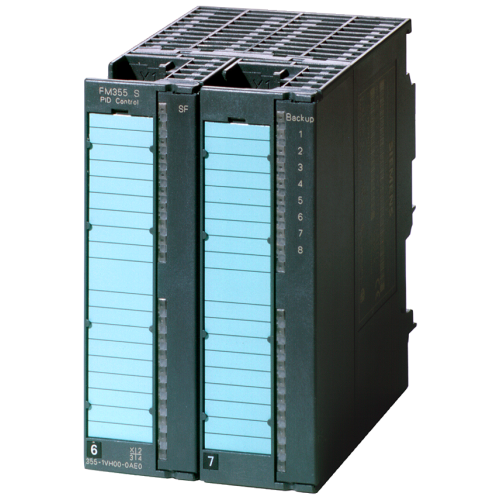

FM 355 C closed loop control module, 8 outputs For 4 step or pulse controllers, 20 Pin Connector Required

Manufacturer's No: 6ES7355-0VH10-0AE0     Manufacturer: Siemens
FM 355 C closed loop control module, 8 outputs For 4 step or pulse controllers, 20 Pin Connector Required

View 3D

Availability Back Order

£1,694.00
  • Control Unit: SIMATIC S7-300
  • Model: FM 355 C
  • Channels: 4
  • Inputs: 4 Analog (AI) + 8 Digital (DI)
  • Outputs: 4 Analog (AO)
  • Configuration: Multi-language package
  • Documentation: Manual and Getting Started guide on CD-ROM
  • Languages: German, French, English, Italian

Accessories



Product

Manufacturer Material ID -
6ES7355-0VH10-0AE0
Net Weight -
0.58kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Number of functions -
-
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN

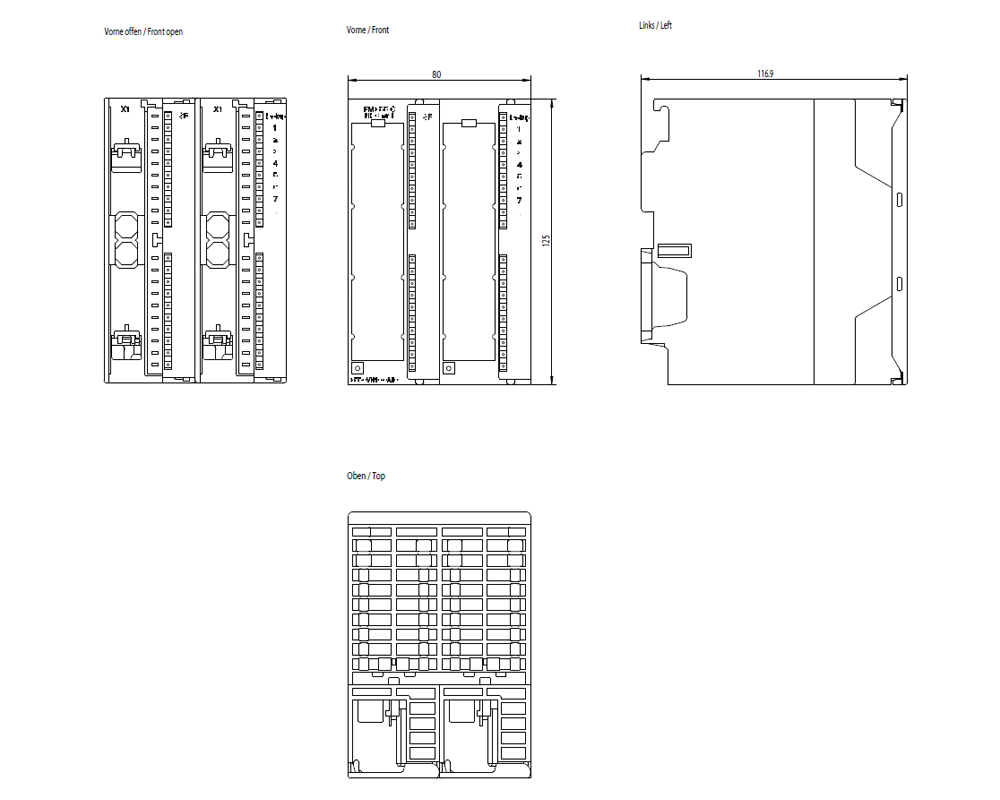

Depth -
120 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Flux controller possible -
Height -
125 Millimetre
Suitable for pressure control -
Suitable for temperature control -
Width -
80 Millimetre

Availability Back Order

£1,694.00
