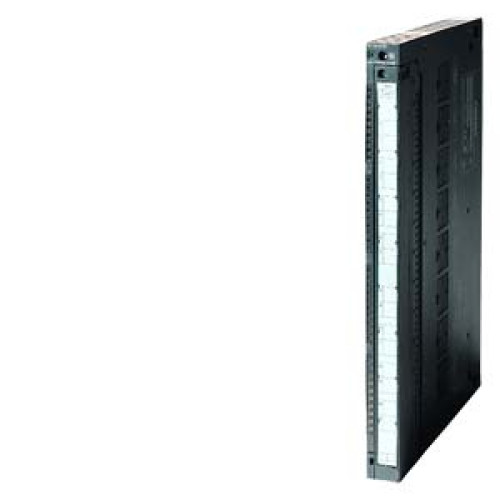

6ES74321HF000AB0

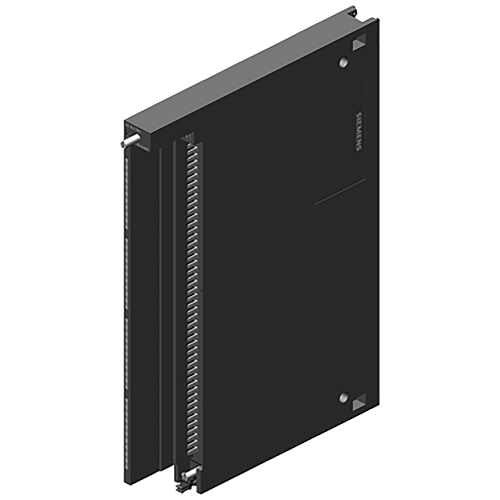

SM 432, 8 analogue outputs, Opt. Iso, 13 bit

Manufacturer's No: 6ES7432-1HF00-0AB0     Manufacturer: Siemens
SM 432, 8 analogue outputs, Opt. Iso, 13 bit

View 3D

Availability Back Order

£1,486.00
  • SIMATIC S7-400 analog output module SM 432
  • Isolated 8 analog outputs
  • Resolution: 13-bit
  • Supports both voltage (U) and current (I) outputs


Product

Manufacturer Material ID -
6ES7432-1HF00-0AB0
Net Weight -
0.78kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue inputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Analogue outputs configurable -
Depth -
210 Millimetre
Explosion safety category for dust -
None
Height -
290 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
8
Output signal configurable -
Output, current -
Output, voltage -
Resolution of the analogue outputs -
13 Bit
Width -
25 Millimetre

Availability Back Order

£1,486.00
