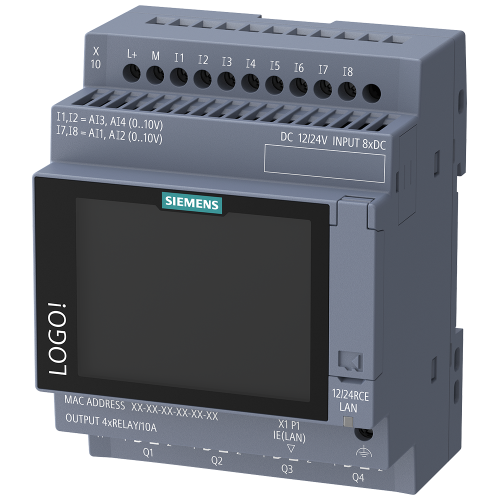

LOGO! Logic Module

LOGO! 9 Basic Modules put more power where you need it: up to 800 function blocks, floating-point arithmetic, and an integrated color touch display — without the complexity of a full PLC platform. Built to scale, the modular system supports up to 64 DI / 60 DQ / 16 AI / 16 AQ and comes with Security-by-Design as standard. One compact device. Ready for what's next.

LOGO! Logic Module
LOGO! Logic Module

LOGO! Basic Modules

The compact core of the LOGO! 9 system — simple to install, reliable in operation, and space-saving by design. The right fit for Everyday Automation tasks.



Why LOGO! Basic Modules?

LOGO! 9 Basic Modules put more power where you need it: up to 800 function blocks, floating-point arithmetic, and an integrated colour touch display — without the complexity of a full PLC platform.

Built to scale, the modular system supports up to 64 DI / 60 DQ / 16 AI / 16 AQ and comes with Security-by-Design as standard. One compact device. Ready for what's next.

Built for Everyday Automation

LOGO! 9 combines the familiar simplicity of a logic module with new capabilities: up to 800 function blocks, floating-point arithmetic, and an integrated colour touch display — all in one compact device.

More scope for growing applications

As your application grows, LOGO! 9 scales with it — up to 64 DI, 60 DQ, 16 AI, and 16 AQ. The new AM4 module adds flexible analogue I/O expansion with selectable resolution for diverse sensor types.

Faster from idea to running application

LOGO! Soft Comfort V9 integrates programming, web visualisation, and simulation in one tool — fully compatible with older projects and available on Windows, macOS, and Linux.



Key specs

Function blocks

Up to 800

Display

Resistive colour touch display, 320 × 240 px — also available without display

I/O expansion

Up to 64 DI / 60 DQ / 16 AI / 16 AQ

Connectivity

Ethernet, Modbus TCP/IP, Modbus RTU, MQTT

Security

Secure Boot, Encrypted Communication, UMAC (4 roles)

Engineering software

LOGO! Soft Comfort V9 — Windows, macOS, Linux



Frequently asked questions

Programs are fully compatible and can be converted bidirectionally using LOGO! Soft Comfort V9. Note that older digital and analogue expansion modules are not hardware-compatible with LOGO! 9 — however, existing communication modules remain compatible.

LOGO! 9 Basic Modules are available in multiple supply voltage variants (12/24 V DC, 24 V AC/DC, 230 V AC/DC) and with or without an integrated display. If local operation and visualisation are required, choose a module with a display. Use the TIA Selection Tool to find the right variant based on your specific I/O and voltage requirements.

LOGO! 9 Basic Modules, the LOGO! TDE, three expansion modules, and LOGO! Soft Comfort V9 will be available for pre-order in April 2026 — the exact date will be communicated shortly. First deliveries are expected from late April / early May 2026. Eight additional expansion modules, including further DM16 and AM variants, are planned for Q1 2027.

LOGO! 9 brings four major Added Values over LOGO! 8:

More Power & Application Space: LOGO! 9 doubles the number of function blocks to 800, adds floating-point arithmetic for more precise analogue processing, and introduces the new AM4 module with selectable analogue resolution — giving you significantly more headroom for demanding applications without additional hardware.

Modern Operating & Display Experience: The new built-in colour touch display and the updated 4.3" LOGO! TDE deliver status information, message texts, and diagnostics directly at the device — for faster response in the field and a professional appearance without additional HMI hardware.

Efficient & Flexible Engineering: LOGO! Soft Comfort V9 integrates the LOGO! Web Editor, including simulation in a single tool, is now also available for macOS and Linux. Combined with the new four-role user management (UMAC), engineering becomes faster, more flexible, and more governed across teams.

Security & Sustainability by Design: Secure Boot and encrypted device-to-device communication protect against unauthorised access and manipulation. Firmware updates via LSC with IP retention ensure service-friendly operation.
