6FB11030AT113MC0

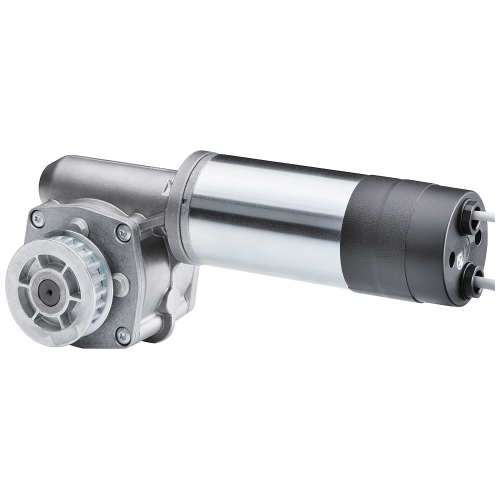

SIDOOR M4 R With driven gear on the right

Manufacturer's No: 6FB1103-0AT11-3MC0     Manufacturer: Siemens
SIDOOR M4 R With driven gear on the right

View 3D

Availability Back Order

£543.24
  • SIDOOR M4 R geared motor
  • Suitable for doors with a maximum weight of 400 kg
  • Pinion on the right side
  • Cable length: 1.5 meters
  • Operating voltage: 30VDC
  • Temperature range: -20°C to +50°C


Product

Manufacturer Material ID -
6FB1103-0AT11-3MC0
Net Weight -
3.83kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
26101205

Technical Specification

-
Siemens
Degree of protection (IP) -
UN
Supply voltage DC -
- Volt
Diameter -
63 Millimetre
Gear ratio -
15
Height -
115 Millimetre
Length -
275 Millimetre
Max. door/gate weight -
400 Kilogram
Max. speed -
0.75 Metre per second
Nominal operating current -
4 Ampere
Pinion position -
Right

Availability Back Order

£543.24
