6FB11111AT103AT3

SIDOOR AT40 CAN With CAN interface For elevator doors

Manufacturer's No: 6FB1111-1AT10-3AT3     Manufacturer: Siemens

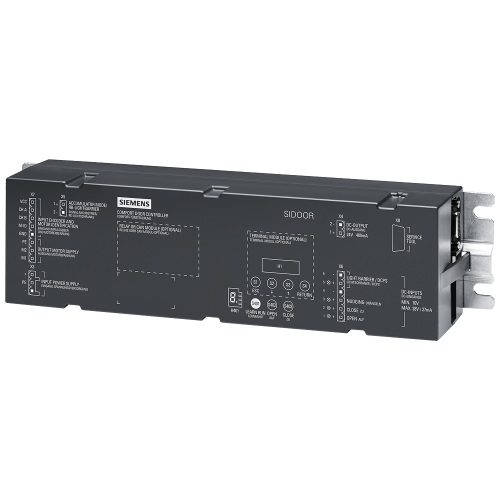

SIDOOR AT40 CAN With CAN interface For elevator doors

Availability Back Order

£636.31
  • Control device for elevator doors
  • Suitable for horizontal doors
  • Supports up to 600 kg door weight
  • Operating voltage: 36VDC
  • Interfaces: 1RS485, 1CAN
  • Inputs: 4*DI (Digital Inputs)
  • Outputs: 2Relay, 124VDC Out
  • Operating temperature range: -20 to +50 °C


Product

Manufacturer Material ID -
6FB1111-1AT10-3AT3
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

-
Siemens
Nominal electricity consumption -
- Ampere
Rated frequency -
- Hertz
Supply voltage AC -
- Volt
Supply voltage DC -
- Volt
Degree of protection (IP) -
IP20
Serial interface -
Type of power supply -
External
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.009 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
600 Kilogram
Max. door/gate width -
5000 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.4 Ampere
Model -
Control device
Nominal power consumption -
80 Watt

Availability Back Order

£636.31
