6FB11120AT203PS0

SIDOOR NT40 For input voltage 230 (±15 %) V AC 50/60 Hz incl. supply line with grounding plug (CEE 7/4)

Manufacturer's No: 6FB1112-0AT20-3PS0     Manufacturer: Siemens
SIDOOR NT40 For input voltage 230 (±15 %) V AC 50/60 Hz incl. supply line with grounding plug (CEE 7/4)

View 3D

Availability Back Order

£166.72

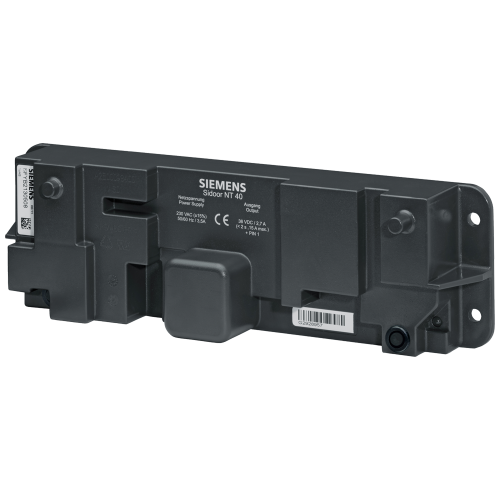

  • SIDOOR NT40 Switched-mode power supply
  • Input voltage: 230V AC (+-15%), 50/60 Hz
  • Output voltage: 36VDC
  • IP54 rated
  • Includes 2m line cable with Safety plug (CEE 7/4)
  • Includes 1.5m connecting cable to Control device
  • Operating temperature: -20 to +55°C


Product

Manufacturer Material ID -
6FB1112-0AT20-3PS0
Net Weight -
1.62kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

-
Siemens
Max. door/gate width -
- Millimetre
Nominal electricity consumption -
- Ampere
Type of power supply -
UN
Nominal power consumption -
- Watt
Max. door/gate weight -
- Kilogram
Max. output current DC -
- Ampere
Supply voltage DC -
- Volt
Input voltage per DC input -
- Volt
Input current per DC input -
- Ampere
Max. opening cycles per hour -
-
Degree of protection (IP) -
IP54
Model -
Other
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP54
Manufacturer specific system components required -
Rated frequency -
50 Hertz
Supply voltage AC -
230 Volt

Availability Back Order

£166.72
