6FB11413AT103WE2

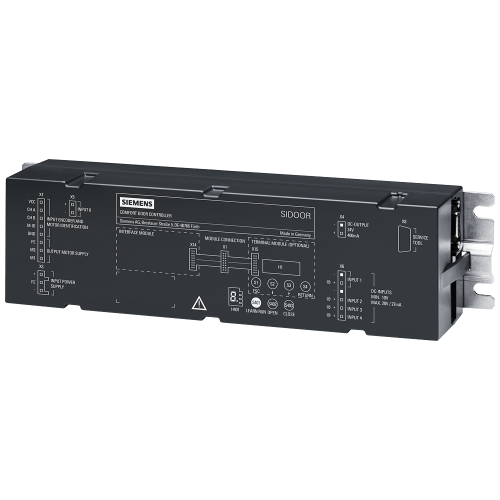

SIDOOR ATD430W Controller for machine tool doors, integrated PROFINET interface (2 RJ45 ports)

Manufacturer's No: 6FB1141-3AT10-3WE2     Manufacturer: Siemens
SIDOOR ATD430W Controller for machine tool doors, integrated PROFINET interface (2 RJ45 ports)

View 3D

Availability Back Order

£1,875.61
  • Control device for machine tools
  • Supports up to 700 kg door weight
  • Voltage: 36 V DC
  • Connectivity: 1RS485, 4DI, 2*relay
  • PROFINET IO conformance class C
  • Interfaces: 2x RJ45 sockets
  • Output: 1*24 V DC
  • Operating temperature: -20 to +50 °C
  • Safety standards: EN ISO 13849-1 performance level d, EN ISO 14120


Product

Manufacturer Material ID -
6FB1141-3AT10-3WE2
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A991X
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

-
Siemens
Nominal electricity consumption -
- Ampere
Rated frequency -
- Hertz
Supply voltage AC -
- Volt
Degree of protection (IP) -
IP20
Serial interface -
Type of power supply -
External
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.009 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
600 Kilogram
Max. door/gate width -
5000 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.4 Ampere
Model -
Control device
Nominal power consumption -
145 Watt
Supply voltage DC -
36 Volt

Availability Back Order

£1,875.61
