17533 {B}

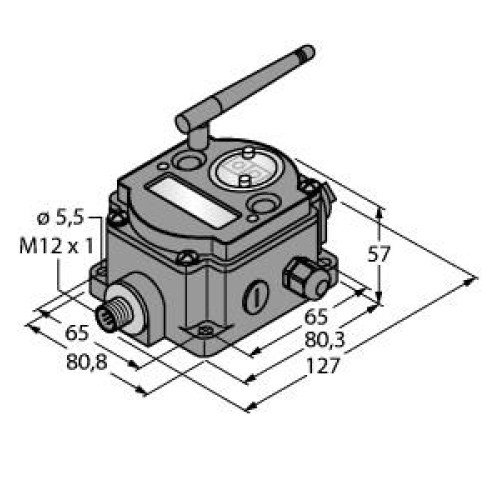

DX80 Perf 2.4 GHz Gateway 65 mW IP67, 10-30 V dc Ext Antenna RS485, In: 4 Disc 2 Anlg Uni, Out: 4 Disc PNP 2 Anlg 0-20 mA

Manufacturer's No: DX80G2M6S-P2     Manufacturer: Turck Banner
DX80 Perf 2.4 GHz Gateway 65 mW IP67, 10-30 V dc Ext Antenna RS485, In: 4 Disc 2 Anlg Uni, Out: 4 Disc PNP 2 Anlg 0-20 mA

Availability Available to order

£677.80
  • Radio Transmission System with Star Topology
  • Gateway with Operating Voltage: 10-30 VDC
  • Max. Transmission Range: 3200000 mm
  • External Antenna with RG58 RP-SMA connection
  • Integrated Signal Strength Indicator
  • Configuration via DIP Switch
  • Modbus RTU Communication with RS485 Interface
  • Deterministic Data Transmission
  • Frequency Hopping FHSS and Time Division Multiplex Access TDMA
  • Transmission Power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)

Read more

  • Alternative Register Assignment
  • Inputs: 4 x PNP, 2 x 0-20 mA or 0-10 V
  • Outputs: 4 x PNP, 2 x 0-20 mA or 0-10 V
  • Power Consumption: < 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80G2M6S-P2
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
85176200000
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151701
Turck Banner

Availability Available to order

£677.80
