17429 {B}

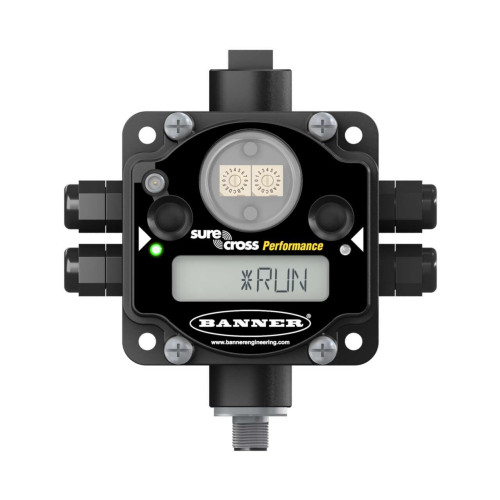

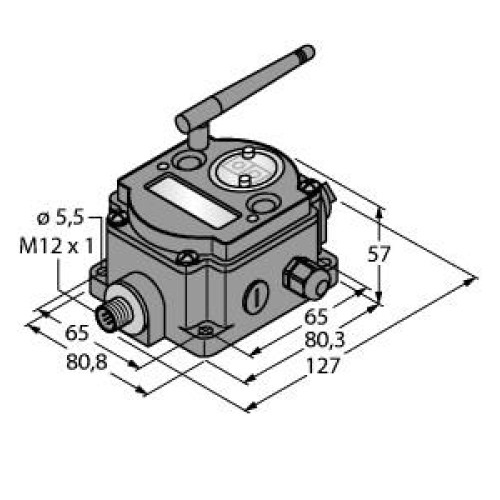

DX80 Perf 2.4 GHz Gateway 65 mW IP67, 10-30 V dc Ext Antenna RS485, Up to 12 Disc PNP IO

Manufacturer's No: DX80G2M6S-P8     Manufacturer: Turck Banner
DX80 Perf 2.4 GHz Gateway 65 mW IP67, 10-30 V dc Ext Antenna RS485, Up to 12 Disc PNP IO

Availability Available to order

POA
  • Radio Transmission System with Star Topology
  • Gateway with Modbus RTU communication and RS485 interface
  • Operating voltage: 10-30 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Deterministic data transmission
  • Frequency hopping FHSS and Time Division Multiplex Access TDMA
  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)

Read more

  • Alternative register assignment
  • 12 configurable inputs/outputs (up to 12 x PNP)
  • Frequency: 2.4 - 2.4835 GHz ISM band
  • Spread spectrum technology: FHSS
  • Power consumption: < 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80G2M6S-P8
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151701
Turck Banner

Availability Available to order

POA
