17427 {B}

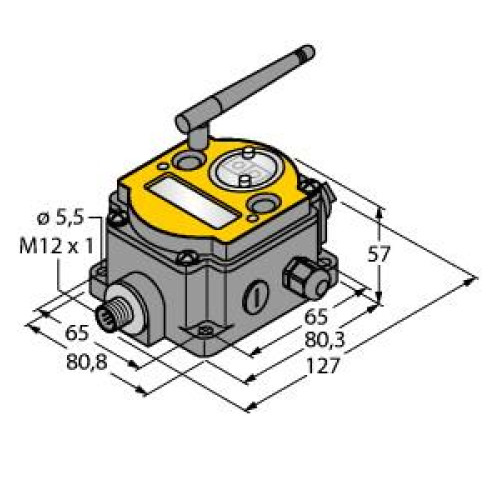

DX80 Performance 2.4 GHz Node 65 mW IP67, 10-30 V dc External Antenna RS485, Up to 12 Disc PNP IO

Manufacturer's No: DX80N2X6S-P8     Manufacturer: Turck Banner
DX80 Performance 2.4 GHz Node 65 mW IP67, 10-30 V dc External Antenna RS485, Up to 12 Disc PNP IO

Availability Available to order

£694.59
  • Radio Transmission System with Star Topology
  • Operating voltage: 10 to 30 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Deterministic data transfer
  • Frequency hopping FHSS
  • Time Division Multiplex Access TDMA
  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)

Read more

  • Inputs: up to 12 x PNP
  • Outputs: up to 12 x PNP
  • Max. 12 inputs and outputs
  • Power consumption: < 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80N2X6S-P8
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
UNSPSC -
32151701
Turck Banner

Availability Available to order

£694.59
