87105 {B}

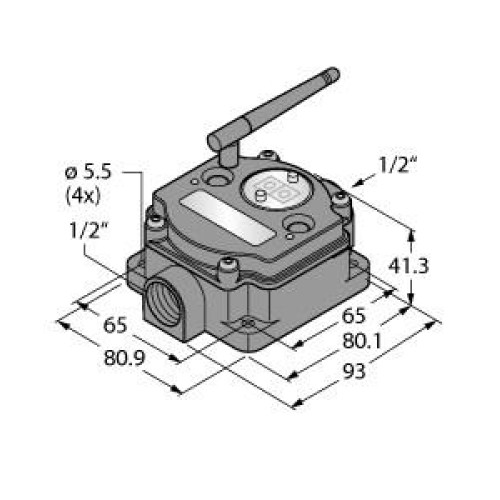

PM Series Node- LCD for Diagnostics, 2.4 GHz, IP67 /NEMA 6, Inputs:Four selectable NPN/PNP discrete, Two 0-20 mA, Outputs: Four PN

Manufacturer's No: DX80N2X6S-PM2     Manufacturer: Turck Banner
PM Series Node- LCD for Diagnostics, 2.4 GHz, IP67 /NEMA 6, Inputs:Four selectable NPN/PNP discrete, Two 0-20 mA, Outputs: Four PNP discrete, Two 0-20 mA

Availability Available to order

POA
  • Radio Transmission System
  • Point-to-point communication
  • Operating voltage: 10-30 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Deterministic data transmission
  • Frequency hopping FHSS
  • Time Division Multiplex Access TDMA

Read more

  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)
  • Inputs: 4 x PNP, 2 x 0-20 mA
  • Outputs: 4 x PNP, 2 x 0-20 mA
  • Power consumption: < 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80N2X6S-PM2
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85176200000
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151701
Turck Banner

Availability Available to order

POA
