87107 {B}

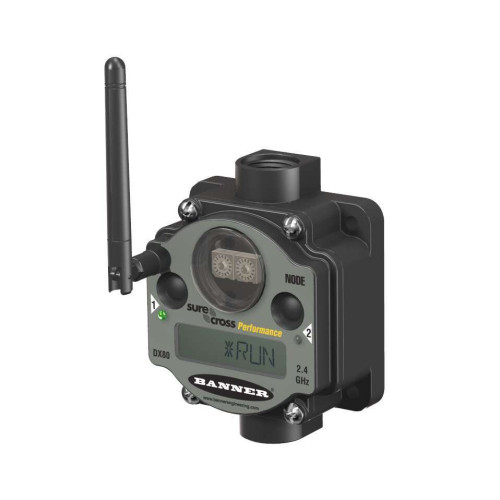

PM Series Node - LCD for Diagnostics, 2.4 GHz IP67, NEMA 6, Inputs: Six Sourcing/PNP Discrete, Outputs: Six Sourcing/PNP Discrete

Manufacturer's No: DX80N2X6S-PM8     Manufacturer: Turck Banner
PM Series Node - LCD for Diagnostics, 2.4 GHz IP67, NEMA 6, Inputs: Six Sourcing/PNP Discrete, Outputs: Six Sourcing/PNP Discrete

Availability Available to order

POA
  • Radio Transmission System
  • Point-to-point communication
  • Operating voltage: 10-30 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Deterministic data transmission
  • Frequency hopping FHSS
  • Time Division Multiplex Access TDMA

Read more

  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)
  • Inputs: 6 x PNP
  • Outputs: 6 x PNP
  • Power consumption: < 60 mA at 24 VDC


Product

Manufacturer Material ID -
DX80N2X6S-PM8
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
32151701
