92940 {B}

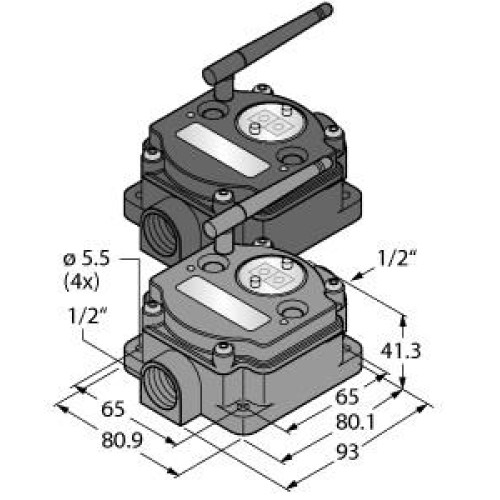

PM8 Series Kit; Includes one gateway and one node; Pre

Manufacturer's No: DX80K2M6-PM8     Manufacturer: Turck Banner
PM8 Series Kit; Includes one gateway and one node; Pre

Availability Available to order

POA
  • Radio Transmission System, Point-to-point, Kit
  • Operating voltage: 10-30 VDC
  • Max. range: 3200000 mm
  • External antenna with RG58 RP-SMA connection
  • Supplied with antennas, screw sets, and cable glands
  • Integrated signal strength indicator
  • Configuration via DIP switch
  • Modbus RTU communication, RS485 interface
  • Deterministic data transmission
  • Frequency hopping FHSS, Time Division Multiplex Access TDMA

Read more

  • Transmission power: 63 mW (18 dBm conducted, ? 20 dBm EIRP)
  • Inputs: 6 x PNP, Outputs: 6 x PNP
  • Power consumption: < 60 mA at 24 VDC
  • Completely preset


Product

Manufacturer Material ID -
DX80K2M6-PM8
Net Weight -
0.90kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
US
UNSPSC -
32151701
Turck Banner

Availability Available to order

POA
