3806275

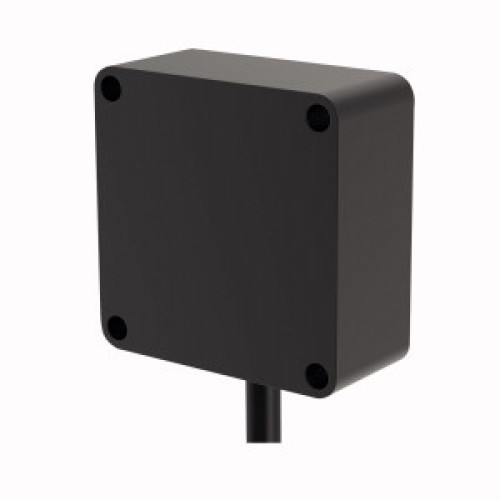

Vibration and Temperature Sensor, 1-Wire Serial Interface, 2.09 m (6.9 ft) M12 Pigtail QD, Aluminum Housing

Manufacturer's No: QM30VT1     Manufacturer: Turck Banner
Vibration and Temperature Sensor, 1-Wire Serial Interface, 2.09 m (6.9 ft) M12 Pigtail QD, Aluminum Housing

Availability Back Order

£253.15
  • Vibration & Temperature Sensor with Serial Interface
  • Operating voltage: 3.6-5.5 VDC
  • Cable length: 2.09 m with M12 x 1 male connector, 5-pin
  • Detects temperature range: -40 to 105 °C with 1 °C resolution and ±3 °C accuracy
  • Detects vibration range: 0-46 mm/s RMS with frequency range of 10-4000 Hz and ±10% accuracy at 25 °C
  • Robust aluminum housing with IP67 protection class
  • Shock resistant up to 400 g
  • Includes BWA-BK-022 mounting plate kit
  • Serial interface for connecting to a DX80 radio node


Product

Manufacturer Material ID -
QM30VT1
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
41111926
Turck Banner

Availability Back Order

£253.15
