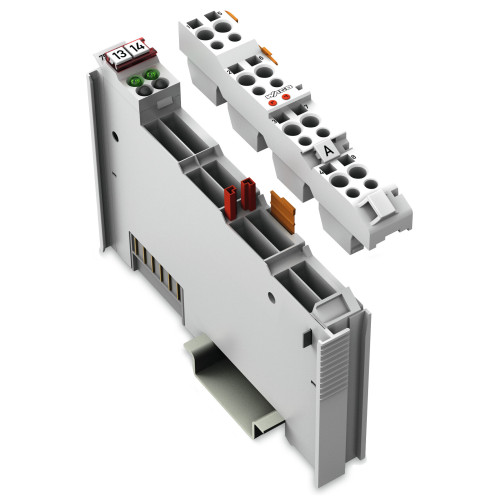

753-514

2Do 125V Ac 0,5A Rel.2Co Pot.-Free

Manufacturer's No: 753-514     Manufacturer: WAGO
2Do 125V Ac 0,5A Rel.2Co Pot.-Free

Availability Available to order

£64.38
  • 2-channel relay output module
  • Supports AC 125V and DC 30V
  • Maximum current: 0.5A
  • Potential-free
  • Relay type: 2 CO (changeover)


Product

Manufacturer Material ID -
753-514
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Width -
12 Millimetre
Height -
73 Millimetre
Depth -
100 Millimetre
Number of digital inputs -
0
Number of digital outputs -
2
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for other bus systems -
Output current -
0.5 Ampere
Type of digital output -
Relay
Type of electric connection -
Spring clamp connection
Rail mounting possible -
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Fieldbus connection over separate bus coupler possible -
System accessory -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Supply voltage DC -
24 Volt
Permitted voltage at output -
125 Volt
Type of output voltage -
AC

Availability Available to order

£64.38
