750-354/000-002

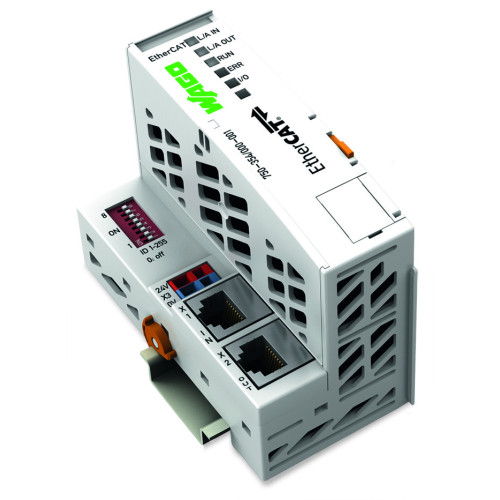

Fieldbus Coupler EtherCAT, ID Switch, 100 Mbit/s, Diagnostics

Manufacturer's No: 750-354/000-002     Manufacturer: WAGO
Fieldbus Coupler EtherCAT, ID Switch, 100 Mbit/s, Diagnostics

Availability Back Order

£226.48
  • Fieldbus Coupler for EtherCAT communication
  • Features an ID switch for easy identification
  • Data transfer speed of 100 Mbit/s
  • Includes diagnostics functionality


Product

Manufacturer Material ID -
750-354/000-002
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
32151701

Technical Specification

Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
71.9 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
96.8 Millimetre
Input voltage at DC -
24 Volt
Max. input current DC -
0.25 Ampere
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
1
Rail mounting possible -
Supporting protocol for other bus systems -
System accessory -
Type of electric connection -
Spring clamp connection
Type of voltage (input voltage) -
DC
Width -
65 Millimetre
With optical interface -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
With potential separation -

Availability Back Order

£226.48
