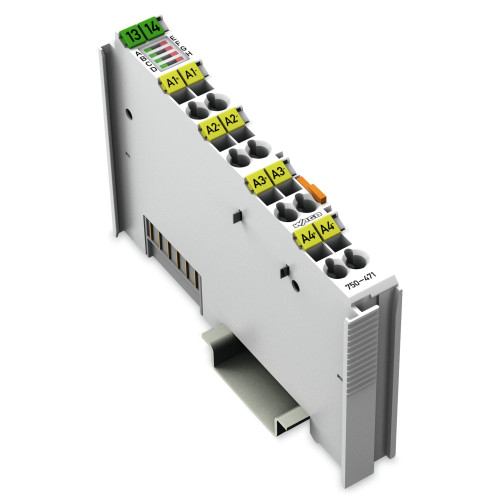

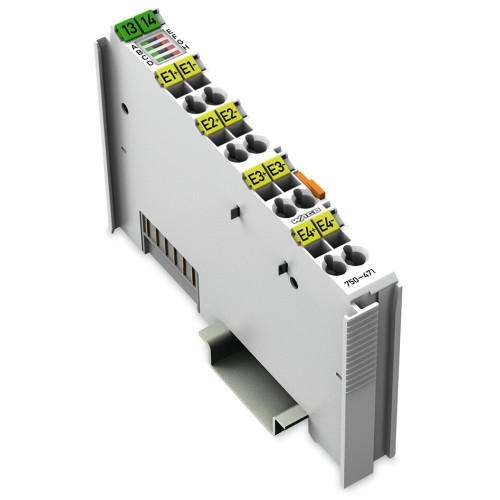

750-471

4-channel analog input, Voltage/Current, Differential input, 16 bits, Diagnostics

Manufacturer's No: 750-471     Manufacturer: WAGO
4-channel analog input, Voltage/Current, Differential input, 16 bits, Diagnostics

Availability Back Order

£472.40
  • 4-channel analog input
  • Voltage/Current
  • Differential input
  • 16-bit resolution
  • Diagnostics


Product

Manufacturer Material ID -
750-471
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
69.8 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
100 Millimetre
Input, current -
Input, voltage -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
24 Volt
System accessory -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
DC
Width -
12 Millimetre

Availability Back Order

£472.40
