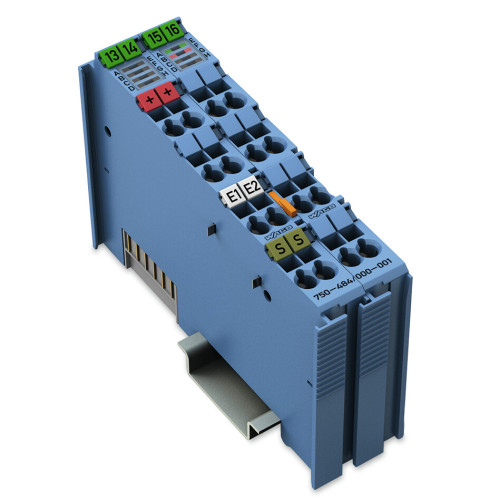

750-484/000-001

2-channel analog input, 4 … 20 mA HART, NAMUR NE 43

Manufacturer's No: 750-484/000-001     Manufacturer: WAGO
2-channel analog input, 4 … 20 mA HART, NAMUR NE 43

Availability Back Order

£565.36
  • 2-channel analog input
  • Supports 4-20 mA HART
  • Complies with NAMUR NE 43 standard
  • Intrinsically safe


Product

Manufacturer Material ID -
750-484/000-001
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP20
Depth -
67.8 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Fieldbus connection over separate bus coupler possible -
Height -
100 Millimetre
Input, current -
Number of analogue inputs -
2
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
12 Bit
Supply voltage DC -
24 Volt
System accessory -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
DC
Width -
24 Millimetre

Availability Back Order

£565.36
