757-185/100-000

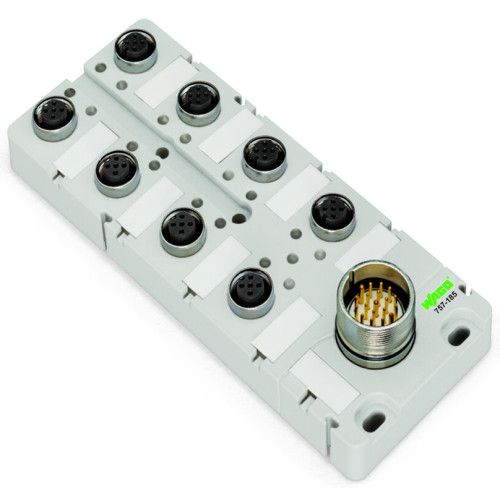

M12 sensor/actuator box, 8-way, 5-pole, M23 connector, Without LED

Manufacturer's No: 757-185/100-000     Manufacturer: WAGO
M12 sensor/actuator box, 8-way, 5-pole, M23 connector, Without LED

Availability Available to order

£96.25
  • Type: Sensor/Actuator Box
  • Connector Type: M12, 8-way, 5-pole
  • Additional Feature: M23 Connector
  • LED: Not included

Accessories

Price £1.17
Available to order


Product

Manufacturer Material ID -
757-185/100-000
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Max. total current -
- Ampere
Cable outer diameter for cable gland -
- Millimetre
Diameter contact female -
- Millimetre
Type of connector for trunk line -
UN
Connectable conductor cross section -
- Square millimetre
Degree of protection (NEMA) -
UN
Depth -
152 Millimetre
Colour housing -
Other
Material housing -
Plastic
Operation temperature -
-25 Degrees celsius
Degree of protection (IP) -
IP68
Length of the preassembled cable -
0 Metre
Cable length configurable -
Degree of protection (IP rating) -
IP68
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
34 Millimetre
Housing colour -
Other
Housing material -
Plastic
Length -
152 Millimetre
Material contact body -
Brass
Material insulation body -
PA
Material of contact surface -
Gold
Max. current carrying capacity per I/O signal -
2 Ampere
Max. current carrying capacity per socket -
9 Ampere
Number of channels per connector slot -
8
Number of poles sensor/actuator slots -
5
Number of sensor-/actuator-slots -
8
Operating temperature -
-25 Degrees celsius
Operating voltage -
10 Volt
Pollution degree -
3
Rated voltage -
32 Volt
Thread sleeves sensor/actuator slots -
M12
Type of branches for sensor-/actuator cables -
M12
Width -
60 Millimetre
With potential separation -

Availability Available to order

£96.25
