762-4204/8000-001

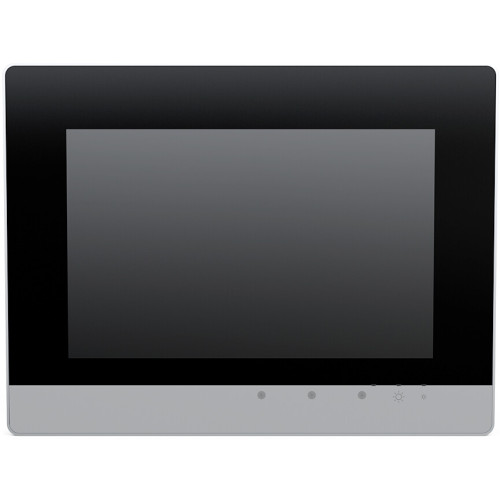

Touch Panel 600, 25.7 cm (10.1"), 1280 x 800 pixels, 2 x ETHERNET, 2 x USB, Audio, Visu Panel

Manufacturer's No: 762-4204/8000-001     Manufacturer: WAGO
Touch Panel 600, 25.7 cm (10.1"), 1280 x 800 pixels, 2 x ETHERNET, 2 x USB, Audio, Visu Panel

Availability Back Order

£1,364.51
  • Touch Panel 600
  • 25.7 cm (10.1") display
  • Resolution: 1280 x 800 pixels
  • Connectivity: 2 x ETHERNET, 2 x USB, Audio
  • Visu Panel

Accessories



Product

Manufacturer Material ID -
762-4204/8000-001
Net Weight -
2.15kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
58 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
0
Front build in possible -
Preinstalled operating system -
Linux
Degree of protection (NEMA) -
4
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
223 Millimetre
Max. main memory -
4096 Megabyte
Number of buttons with LED -
0
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCI-slots -
0
Number of free PCMCIA-slots -
1
Number of function buttons -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces PS2 -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces SCSI -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Rack-assembly possible -
Recess depth -
58 Millimetre
Screen diagonal -
10.1 inch
Supply voltage DC -
24 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of display -
TFT
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width of the front -
293 Millimetre
With other storage media -
With touch screen -

Availability Back Order

£1,364.51
