GJL1313209R5001

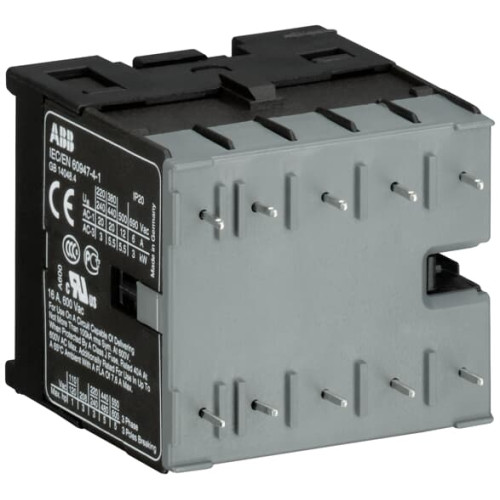

BC7-40-00-P2.4-51 Mini Contactor 17 ... 32 V DC - 4 NO - 0 NC - Soldering Pins

Manufacturer's No: BC7-40-00     Manufacturer: ABB
BC7-40-00-P2.4-51 Mini Contactor 17 ... 32 V DC - 4 NO - 0 NC - Soldering Pins

Availability Back Order

£56.88
  • Model: BC7-40-00-P2.4-51 Mini Contactor
  • Voltage: 17-32 V DC
  • Configuration: 4 Normally Open (NO) contacts, 0 Normally Closed (NC) contacts
  • Compact size with soldering pins
  • Ideal for applications requiring reliability in limited space
  • Suitable for controlling single or three-phase loads up to 5.5 kW (AC-3) and 12 A (AC-1)
  • Noiseless and hum-free coil
  • Includes switch position indication


Product

Manufacturer Material ID -
BC7-40-00
Net Weight -
1.78kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39122330

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at DC -
17 Volt
Depth -
47.7 Millimetre
Height -
45.2 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
220 Volt
Operating voltage at AC 60 Hz -
220 Volt
Rated control supply voltage at DC -
17 Volt
Rated operation current Ie at AC-1, 400 V -
12 Ampere
Rated operation current Ie at AC-3, 400 V -
12 Ampere
Rated operation power at AC-3, 400 V -
5.5 Kilowatt
Rated operation power NEMA -
2.2371 Kilowatt
Type of electrical connection of main circuit -
PCB connection
Voltage type for actuating -
DC
Width -
47.5 Millimetre
