Inductive Sensor, For Use in Vehicle Board Nets

Manufacturer's No: BI10-Q14-AP45X2LD     Manufacturer: Turck Banner
Inductive Sensor, For Use in Vehicle Board Nets

Availability On Request

£84.66
  • Inductive sensor for vehicle board nets
  • Operating voltage: 8.6 to 65 VDC
  • Rated switching distance: 10 mm

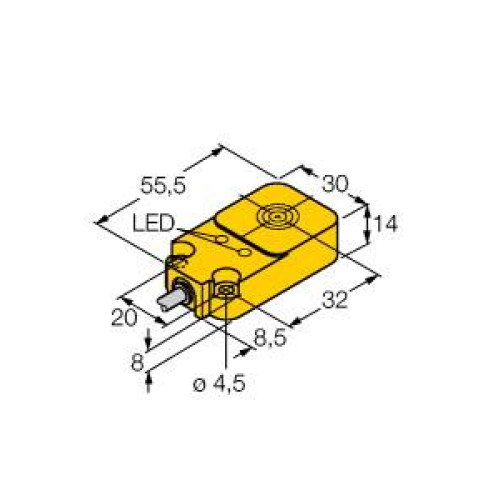

  • Flush mount with a rectangular shape and height of 14 mm
  • Cable length: 2 m
  • Material: Plastic (PBT-GF30-V0)
  • Suitable for 12V and 24V vehicle board nets
  • Increased interference immunity: 100 V/m radiated according to ISO 11452-4 and 100 mA BCI according to ISO 11452-2
  • Load-dump protection according to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range

Read more

  • High protection class: IP68/IP69K
  • Protection against salt spray and rapid temperature changes
  • Laser engraved label for permanent legibility
  • DC 3-wire with NO contact and PNP output
  • Cable connection with E1 type approval from the German Federal Office for Motor Vehicles


Product

Manufacturer Material ID -
BI10-Q14-AP45X2LD
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216
Turck Banner

Availability On Request

£84.66
