1584020

Inductive Sensor, For Use in Vehicle Board Nets

Manufacturer's No: BI15-EM30-AP45XLD-H1141     Manufacturer: Turck Banner
Inductive Sensor, For Use in Vehicle Board Nets

Availability On Request

£131.97
  • Inductive sensor for vehicle board nets
  • Operating voltage: 8.6 to 65 VDC
  • Rated switching distance: 15 mm

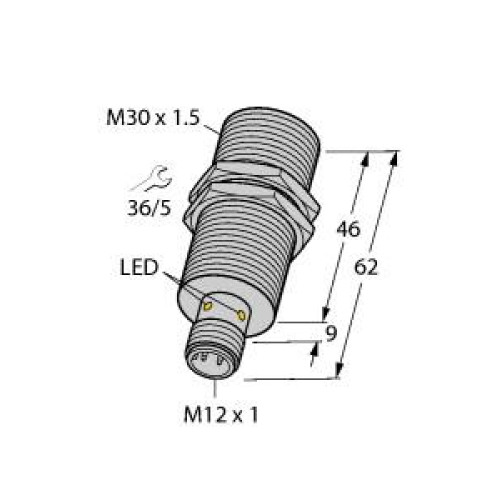

  • Flush design with M30 x 1.5 threaded tube made of stainless steel 1.4301
  • Increased interference immunity: 100 V/m radiated according to ISO 11452-4 and 100 mA BCI according to ISO 11452-2
  • Load-dump protection according to DIN ISO 7637-2 (SAE J 113-11)
  • Extended temperature range
  • High protection class: IP68/IP69K
  • Protection against salt spray and rapid temperature changes
  • Laser engraved label for permanent legibility

Read more

  • DC 3-wire with NO contact, PNP output
  • M12 x 1 male connector
  • E1 type approval from the German Federal Office for Motor Vehicles


Product

Manufacturer Material ID -
BI15-EM30-AP45XLD-H1141
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39121527

Technical Specification

Construction type housing -
Cylinder, screw-thread
Diameter sensor -
30 Millimetre
Explosion safety category for dust -
Other
Explosion safety category for gas -
Other
Housing material -
Metal
Length of sensor -
62 Millimetre
Mechanical mounting condition for sensor -
Concise
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Supply voltage -
8.6 Volt
Switching distance -
15 Millimetre
Switching frequency -
500 Hertz
Type of actuation -
Metallic Target
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact
Type of switching output -
PNP
Voltage type -
DC
Turck Banner

Availability On Request

£131.97
