1534601

Inductive Sensor, With Analog Output

Manufacturer's No: BI15-Q20-LIU-H1141     Manufacturer: Turck Banner
Inductive Sensor, With Analog Output

Availability On Request

£176.34
  • Inductive sensor with analog output
  • Operating voltage: 15-30 VDC
  • Measuring range: 4mm to 11mm
  • Flush type, rectangular shape with a height of 20mm
  • Active face on top
  • Material: Plastic (PBT-GF30-V0)
  • 4-wire configuration
  • Analog output options: 0-10 V and 0-20 mA
  • Connector: M12 x 1 male connector


Product

Manufacturer Material ID -
BI15-Q20-LIU-H1141
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
32111506

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

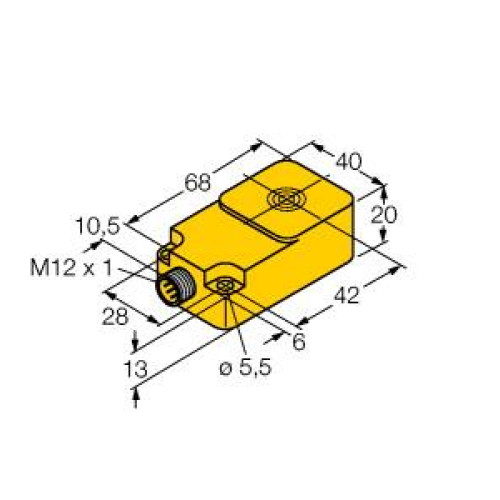

Height of sensor -
20 Millimetre
Housing material -
Plastic
Length of sensor -
68 Millimetre
Limiting frequency -
110 Hertz
Measuring range length -
4 Millimetre
Mechanical mounting condition for sensor -
Concise
Operating voltage -
15 Volt
Relative linearity deflection -
3 Percentage
Supply voltage -
15 Volt
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Plug-in connection
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£176.34
